Super73 Electric Cruiser Bike

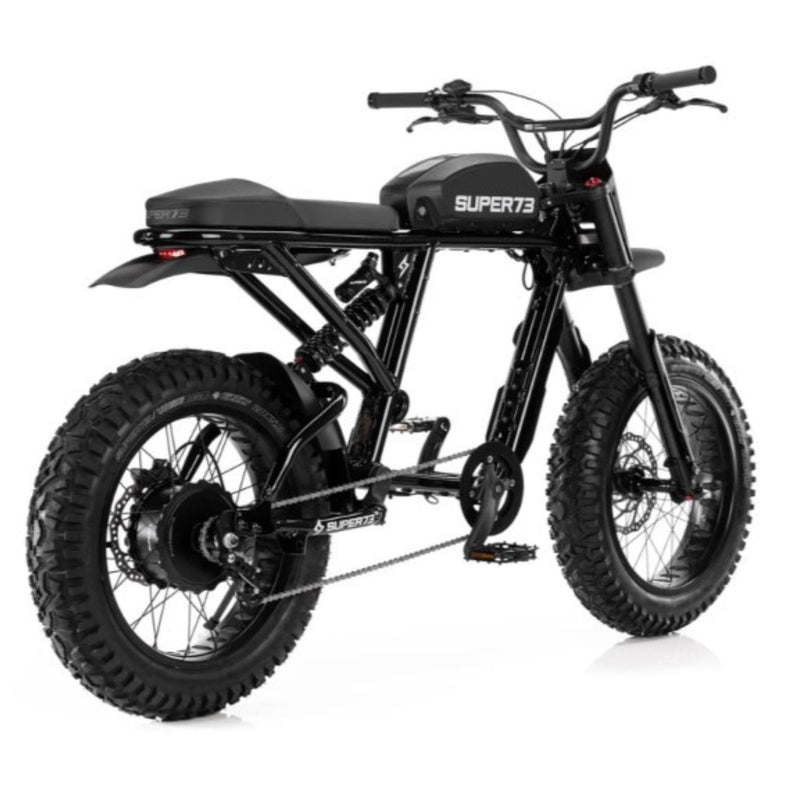

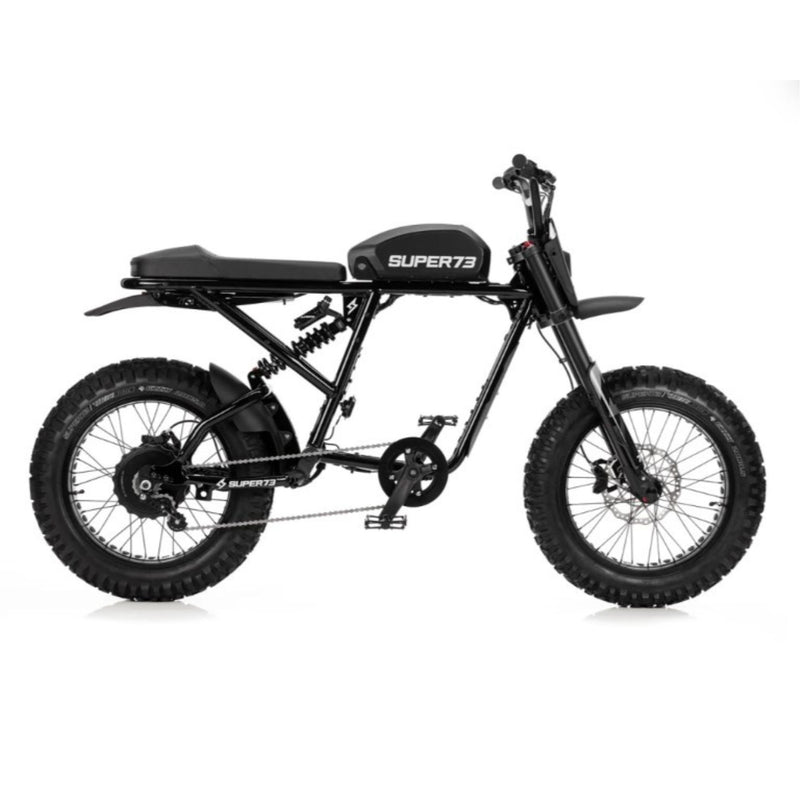

RX-Mojave "Performance Adventurer"

The SUPER73-RX Mojave showcases all of SUPER73’s iconic features; the powerful R-series drive system, along with 4 piston brakes and fully adjustable dual suspension, making the RX our top-of-the-line performance model. Fitted with our GRZLY All-Terrain Tires, the RX Mojave is comparable to none when it comes to off-road trail riding.

Riding Features
Legally Ride Without a License, Insurance or Registration
Multi-Class Ride Modes | Each bike comes pre-programmed in the Class-2 mode, which allows for throttle operation and pedal-assist riding up to 20mph. Plus access Class-1, Class-3, and unlock Off-Road mode to reach 28mph+.
Removable Battery | Easily charge at home or work with any standard 110v outlet.
Range | 40+ miles* of range at 20mph under Class-2 throttle-only operation; 75+ miles* of range using Class-1 pedal-assist mode.
Motor | The internally geared brushless DC hub motor is capable of outputting up to 2000 watts of peak power.

Model Features
Explore the RX Mojave
Integrated LED Lights | Comes with both brake lights and square headlight integrated into a moto-style number plate.
Speedster Low Profile Seat | A slick cafè-racer style Speedster seat.
Blain Handlebars | A stylish low-rise handlebar made of high strength chromoly.



Aggressive Tread Pattern
Featuring GRZLY for All Terrain
With an aggressive knobby tread pattern, the GRZLY offers excellent grip on a variety of terrain, designed to dig into loose dirt and gravel with ferocity or provide consistent contact and grip on hardpack, rock, and asphalt.

Smart Display
Bluetooth Connectivity for iOS and Android
Download the App | Unlock all of Super73’s e-bike features and receive over-the-air updates.
Navigation | The app provides turn-by-turn navigation on both the Smart Display and your mobile device.
View Settings | Easily change between pedal assist modes and view your current speed, remaining battery range, and more.


*Battery range estimates depend on conditions such as rider weight, speed, temperature, wind, tire pressure, terrain, incline, etc. Mileage may vary. All bikes are subject to minor cosmetic changes.


SPECIFICATIONS

FRAME:  6061/7005 aluminum alloy, 1-1/8" to 1.5"

MOTOR:

• Class-1 Mode Output: 750 watts nominal / 1200 watt peak
• Class-2 Mode Output: 750 watts nominal / 1200 watt peak (Default)
• Class-3 Mode Output: 750 watts nominal / 1200 watt peak
• Off-Road Mode Output: 1200 watts nominal / 2000* watt peak

*Off-Road Mode peak output will increase from 2000 watts to 2300 watts with future OTA update.

TOP SPEED:

• Class-1 Mode: up to 20mph (throttle deactivated, pedal assist only)
• Class-2 Mode: up to 20mph
• Class-3 Mode: up to 28mph (throttle deactivated, pedal-assist only)
• Off-Road Mode: 28mph+

BATTERY: 960 watt-hours, 21700 cells

WEIGHT: 80 lbs

FRONT HUB: 15 x 150mm thru-axle aluminum alloy

RIMS: 20" x 100mm alloy with lightening cutouts

TIRES: Front: 20 x 4.5" / Rear: 20" x 5" GRZLY Tires

INNER TUBES: 20" x 4.5-5", angled valve stem

BRAKES:
Tektro Hydraulic, 4-piston aluminum forged caliper, 203mm x 2.3mm front rotor, 180mm x 2.3mm rear rotor

SUSPENSION:
Front: Inverted coil spring fork w/ air assist - adjustable preload and rebound damping, 120mm travel, 35mm stanchions
Rear: Coilover piggyback mono shock - adjustable preload, compression, and rebound damping

DISPLAY: Transflective Monochrome LCD + Mobile Device

IOS + ANDROID COMPATIBLE: Yes


HEADLIGHT: LED - 600 lumens

TAIL LIGHT: LED

HORN: Yes

CHARGER: 3A (6-7 hour charge time) 5A sold separately (3-4 hour charge time)

THROTTLE: Thumb throttle

PEDAL ASSIST: 4 modes (ECO, TOUR, SPORT, SUPER)

BOTTOM BRACKET: 120mm sealed bearing, square taper

CRANK / FRONT CHAIN RING: 125mm alloy crank arms, 36T chainring / Optional: 44T chainring for 10 speed gearing

GEARING: Single-speed 16T rear cog / Optional: 10 speed gearing (11-34T) sold separately

REAR DERAILLEUR: Single-speed chain tensioner / Optional: 10 speed: accessory sold separately

PASSENGER FOOT PEGS: Optional accessory sold separately

SEAT HEIGHT: 32"

WEIGHT LIMIT: 325lbs

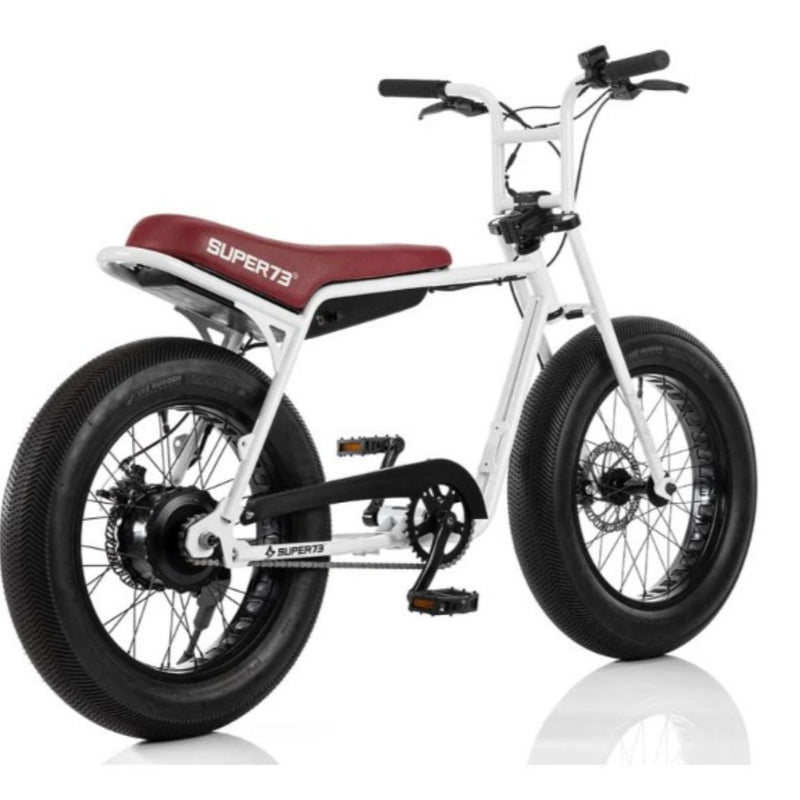

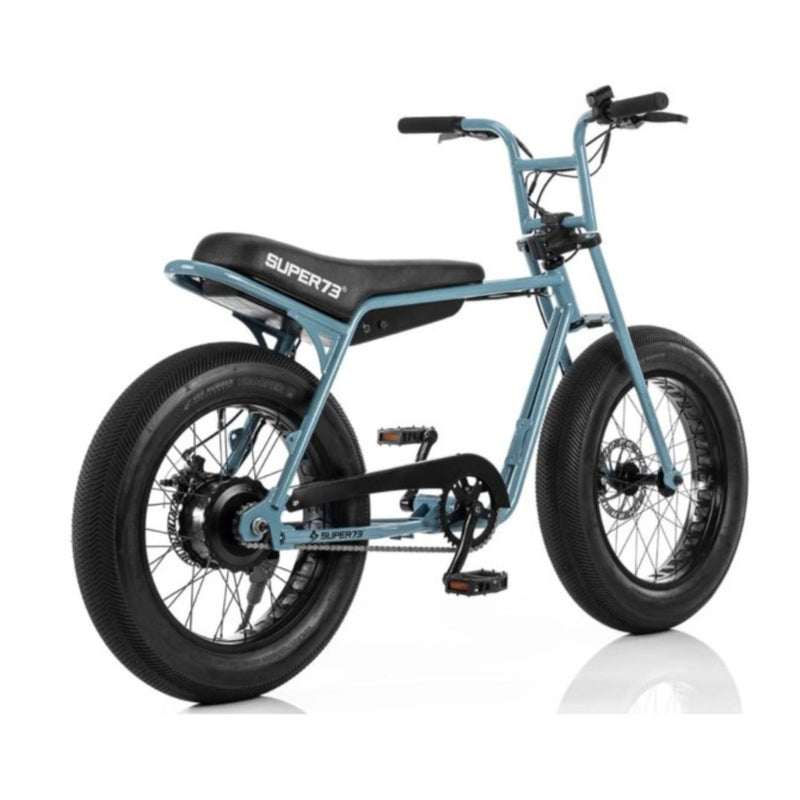

Z1 "Little Neighborhood Explorer"

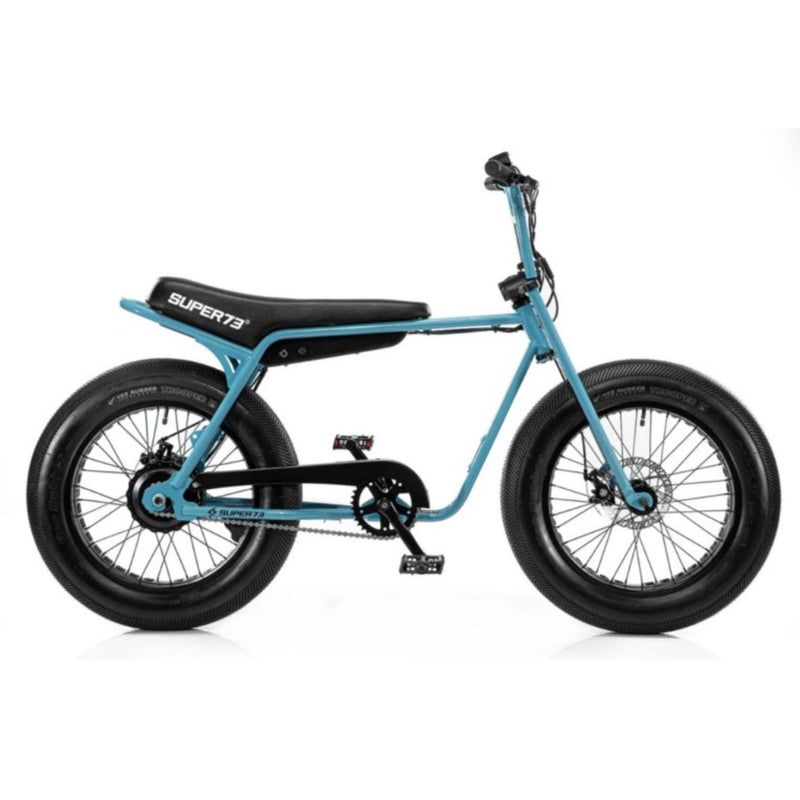

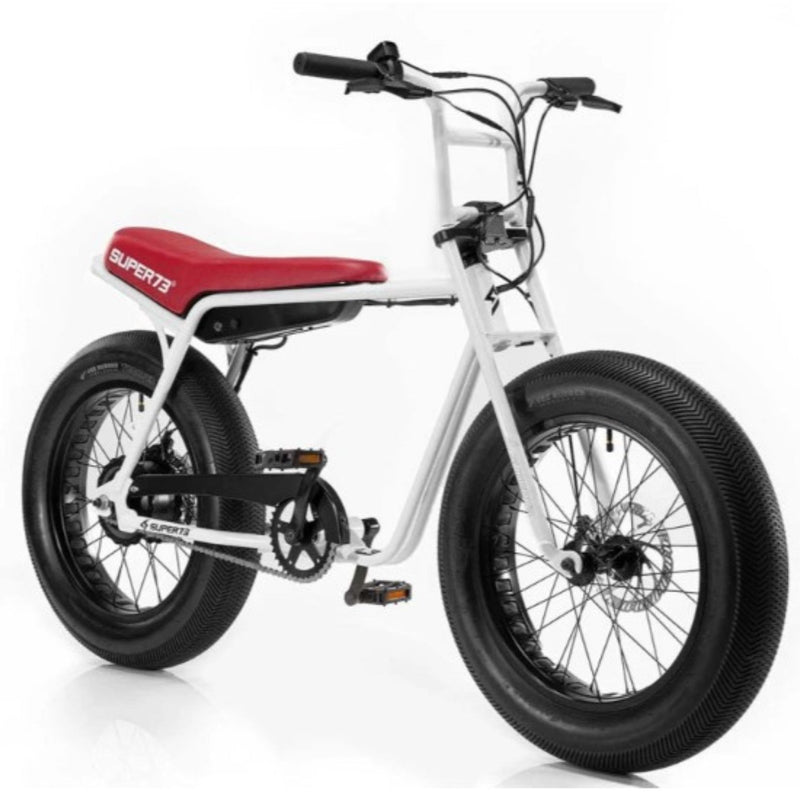

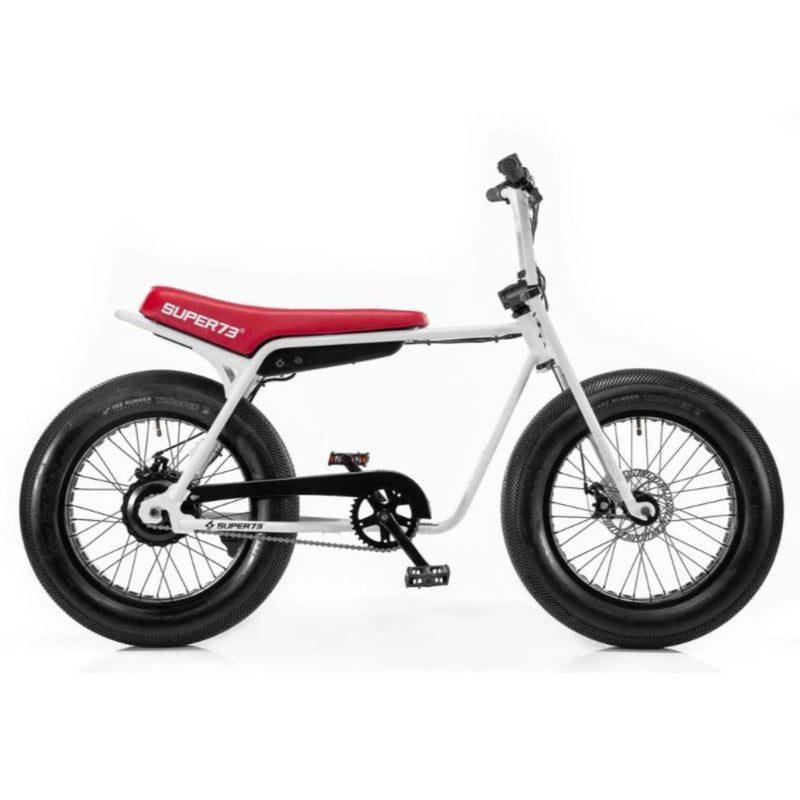

The Z1 comes with an integrated battery and easy-to-use throttle display for a user-friendly experience. Perfect for small adults, big kids, and everyone in-between.

Riding Features
Legally Ride Without a License, Insurance or Registration
Class-2 Ride Mode | Each Z1 comes pre-programmed in the Class-2 mode, which allows for throttle operation up to 20mph. Class-2 mode allows riders as young as 16 to ride legally on city streets.
Integrated Battery | The Z1 is our only vehicle with the unique integrated battery — plug in and charge with any standard 110v outlet.
Range | 15+ miles* of range at 20mph under Class-2 throttle-only operation.
Motor | The internally geared brushless DC hub motor is capable of outputting up to 900 watts of peak power.

Model Features
Explore the Z1
Lightweight | At only 56 lbs, the Z1 is our lightest bike in the lineup — convenient to transport and fun to ride.
Simple Thumb Throttle | With the push of a thumb, you're off! Our easy-to-use thumb throttle is intuitively located on the right handlebar.

Retro Urban Tires
Featuring Trooper Tires for Street Handling

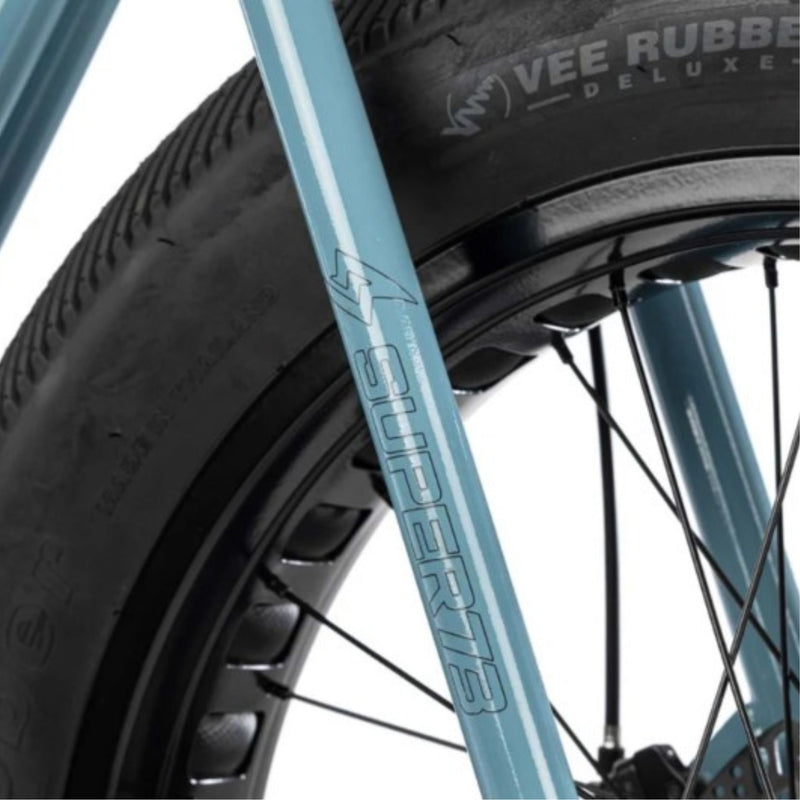

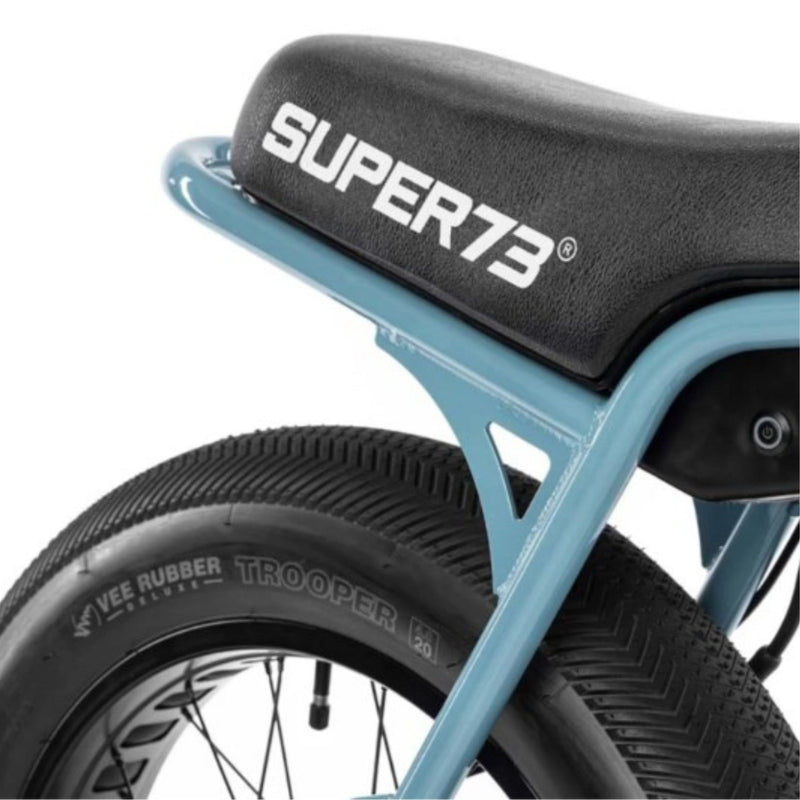

Measuring 4" wide, the Trooper tire was designed with a dense center tread pattern that extends tire life while an aggressive side tread provides cornering grip. With good handling on the street, this retro influenced tire is built to tackle the urban landscape with good wear over time.

*Battery range estimates depend on conditions such as rider weight, speed, temperature, wind, tire pressure, terrain, incline, etc. Mileage may vary. All bikes are subject to minor cosmetic changes.

SPECIFICATIONS

FRAME: Steel

MOTOR: 500 watts nominal / 900 watts peak

TOP SPEED: Class-2 Mode: 20mph

BATTERY: 418 watt-hours, Panasonic cells Battery is built into the seat/not removable for charging

WEIGHT: 56 lbs

FRONT HUB: 9 x 135mm axle

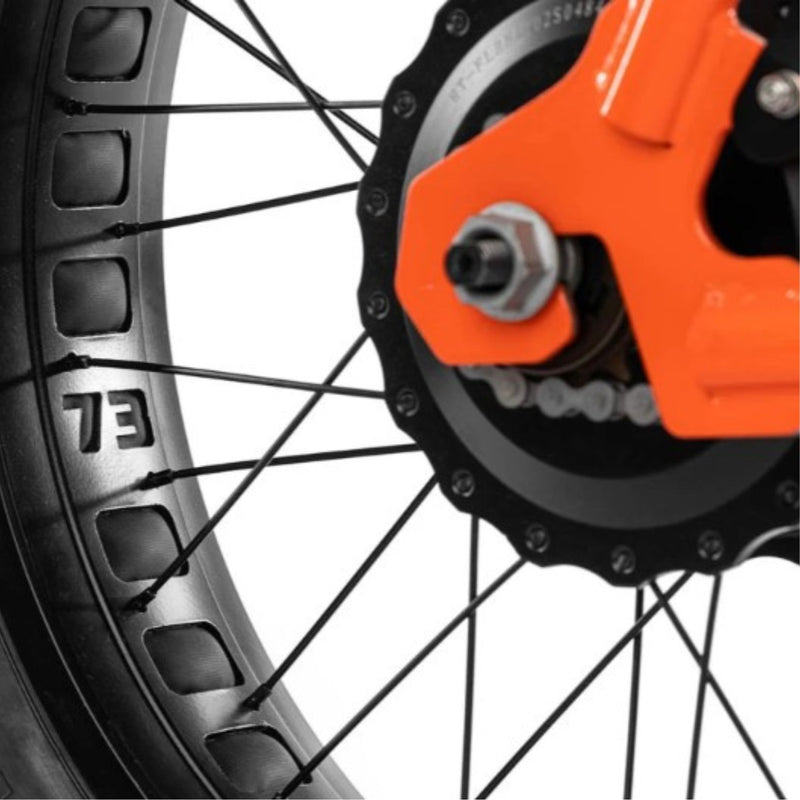

RIMS: 20" x 80 mm alloy

TIRES: Trooper Tires - Front 20 x 4"/ Rear: 20 x 4"

INNER TUBES: 20" x 4"

BRAKES: Mechanical Brake System

SUSPENSION: Not available

DISPLAY: 3 LED Display

IOS + ANDROID COMPATIBLE: Not available

HEADLIGHT: Not available

TAIL LIGHT: Not available

TURN SIGNALS: Not available

HORN: Not available

CHARGER: 2A (6-7 hour charge time)

THROTTLE: Thumb throttle

PEDAL ASSIST: Not available

BOTTOM BRACKET: 100mm, Square Taper, Sealed Cartridge Bearings

CRANK / FRONT CHAIN RING: 140MM 9/16", 40T Chainwheel

GEARING: Not available

REAR DERAILLEUR: Single-speed chain tensioner

PASSENGER FOOT PEGS: Not Available

SEAT HEIGHT: 27"

WEIGHT LIMIT: 275lbs
