Specialized Turbo Vado 3.0 IGH
- Regular
- $ 3,250.00
- Sale
- $ 3,250.00
- Regular
- $ 3,250.00
Sold Out
- Unit Price
- per
Shipping calculated at checkout.
Details
PRODUCT DETAILS
Consider Vado your high-performance transportation bike, getting you where you’re going with an unmatched combination of speed, reliability, and confidence. Whether you load it up with your stuff, or jump on and go, commute to work, or ride to the gym, Vado’s full power and huge range will get you from ‘point A’ to ‘point B’ ASAP.
The Specialized Vado has everything you need for e-powered transport. It brings a balanced nature to the way it handles and superior levels of comfort, plus a motor range of up to 90 miles. This is a true class leader of its type.
TURBO: The heart of the Vado is its Turbo technology, an advanced and integrated electric bike system that delivers an unequaled combination of power, natural feel, anti-theft functions, training tips, a full-function bike computer, 93 miles / 150 km of range, and more.
POWERFUL: It’s you, just faster — it’s 4x You. The Turbo Full Power system senses the force you apply to the pedals and naturally quadruples it for an experience that makes getting up any hill or to any destination no sweat. Literally.
COMFORTABLE AND CONFIDENT: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.
SMOOTH: Stay comfortable in the saddle with an 80mm front suspension fork, and higher volume tires that smooths harsh bumps from points A to B.
SECURE: Vado has anti-theft lock built right into the bike. Prevent would-be bike thieves by disabling the motor with a press of a button so no one can turn on the motor without your phone connected to the Specialized app or your personalized pin. The Vado’s battery locks in the bike or can be easily taken with you. And if anyone tries to move your bike an alarm will sound. Beat it, thieves.
The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.
- Turbo Full Power 2.0E motor and 530Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.

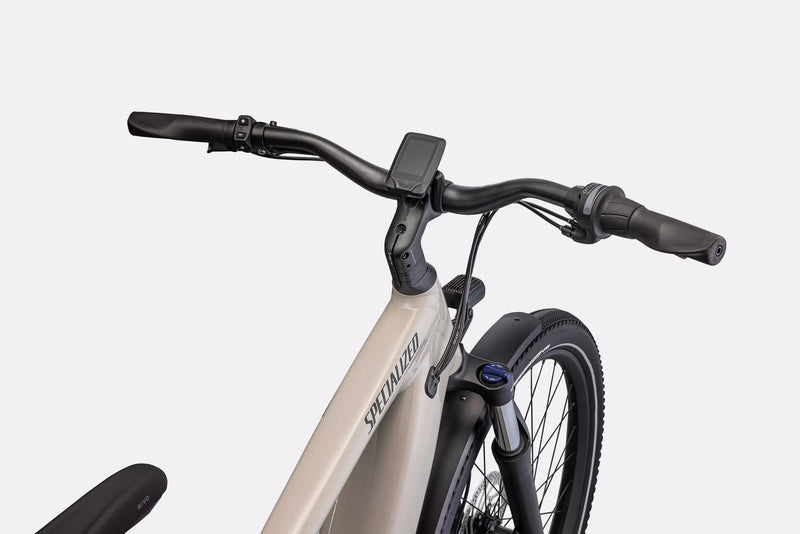

- MasterMind and Specialized app - The MasterMind display reveals all relevant info about your ride and allows real-time tuning of support levels. MasterMind seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
- The stepless shifting enviolo City Internal Gear Hub (IGH) features a specifically designed internal gear hub and matching controller. The manual stepless technology is as simple as adjusting the volume on a radio. This allows riders to focus on the important aspects of a bike ride such as traffic or scenery.
- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
- Turbo System Lock - Use the Specialized app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

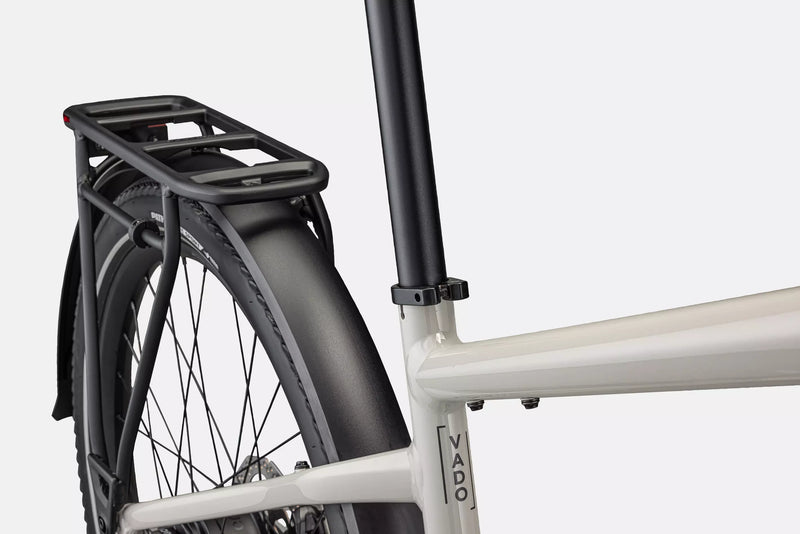

- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
- Long-Range - With a ride-anywhere range, go up to 56 miles (90 km) or 4 hours on a single charge (eco mode).
TECHNICAL SPECIFICATIONS
E-bike
- Charger
- Custom charger, 42V4A w/ Rosenberger plug, 100-240V
- Wiring Harness
- Custom wire harness
- UI/Remote
- MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
- Motor
- Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
- Battery
- Specialized U2-530, alloy casing, state of charge display, 530Wh
Frameset
- Seat Binder
- Alloy, bolt-type, 34.9mm
- Frame
- E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Suspension
- Fork
- SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Brakes
- Rear Brake
- Shimano BR-MT200, hydraulic disc, 180mm 6-bolt
- Front Brake
- Shimano BR-MT200, hydraulic disc, 180mm Centerlock
Drivetrain
- Crankset
- Custom alloy forged crankarms
- Chaincase
- Custom chaincover
- Cassette
- Gates Carbon Drive CDC 24t sprocket, silver
- Chainrings
- Gates Carbon Drive CDC 50T chainring, black
- Chain
- Gates Carbon Drive CDX 122t belt, black
- Internal Gear Hub
- Enviolo Integrated Gear Hub, Manual Shifting
- Shift Levers
- Enviolo Twist Display Pure
Wheels & tires
- Rims
- 650b disc, double-wall alloy, pinned, 32h
- Spokes
- DT Swiss Industry
- Rear Tire
- Pathfinder Sport Reflect, 650Bx2.3
- Front Tire
- Pathfinder Sport Reflect, 650Bx2.3
- Inner Tubes
- Schrader, 40mm valve
- Front Hub
- Shimano MT400, Centerlock, 15x100mm, 32h
- Rear Hub
- enviolo CITY, 310% range, 6-bolt, 10x135mm, 32h
Cockpit
- Saddle
- Rivo Sport, steel rails, 155mm
- Grips
- Specialized Body Geometry Contour, lock-on
- Stem
- Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
- SeatPost
- Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
- Handlebars
- Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Accessories
- Fenders
- Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
- Mirror
- Handlebar rear view mirror, aluminum
- Headlight
- Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V
- Bell
- Simple bell
- Taillight
- Spanninga Commuter Glow XE, 12V
- Pedals
- Specialized Commuter w/ grip tape & reflectors
- Kickstand
- Specialized kickstand, 40mm mount
- Rack
- Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
- Bike Lock
- Turbo System Lock
Product details
- Product ID
- 275161
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
- Weight
- 26.4kg (58 lb, 3.2 oz)
- Weight Size
- MD
GEOMETRY
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170 | 170 | 170 | 170 |
| Handlebar Width | 680 | 680 | 680 | |
| Stem Length | 60 | 60 | 75 | 75 |
| Saddle Width | 155 | 155 | 155 | 155 |
| Seatpost Length | 300 | 400 | 400 | 400 |
| Reach | 423 | 444 | 464 | 481 |
| Bike Standover Height | 618 | 617 | 617 | 626 |
| Seat Tube Angle (Virtual) | 75.5 | 75 | 74.5 | 74 |
| Toptube Length (horizontal) | 585 | 615 | 645 | 675 |
| Headtube Length | 135 | 150 | 165 | 190 |
| Seat Tube Length | 400 | 450 | 460 | 500 |
| BB Height | 285 | 285 | 285 | 285 |
| BB Drop | 70 | 70 | 70 | 70 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Stack | 625 | 639 | 652 | 676 |
| Wheelbase | 1160 | 1186 | 1212 | 1239 |
| Fork Length (full) | 480 | 480 | 480 | 480 |
| Trail | 96 | 96 | 96 | 96 |
| Front Center | 699 | 724 | 750 | 777 |
| Chainstay Length | 470 | 470 | 470 | 470 |
| Headtube Angle | 68 | 68 | 68 | 68 |
