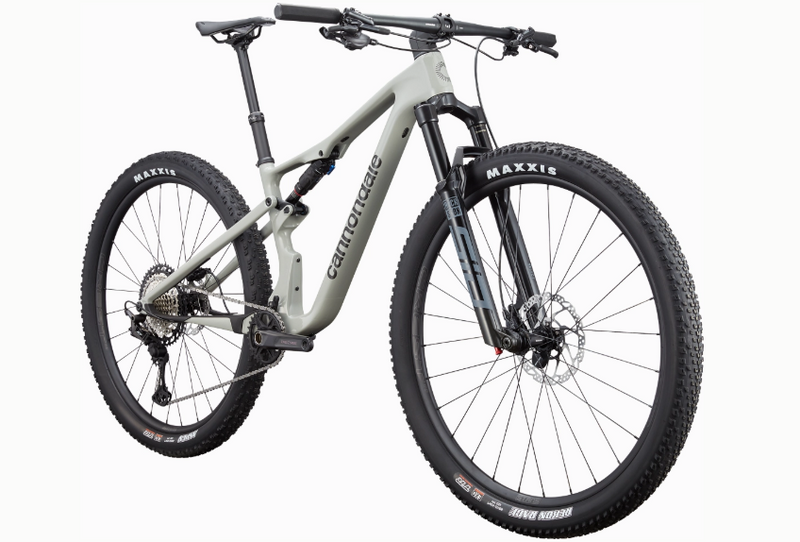

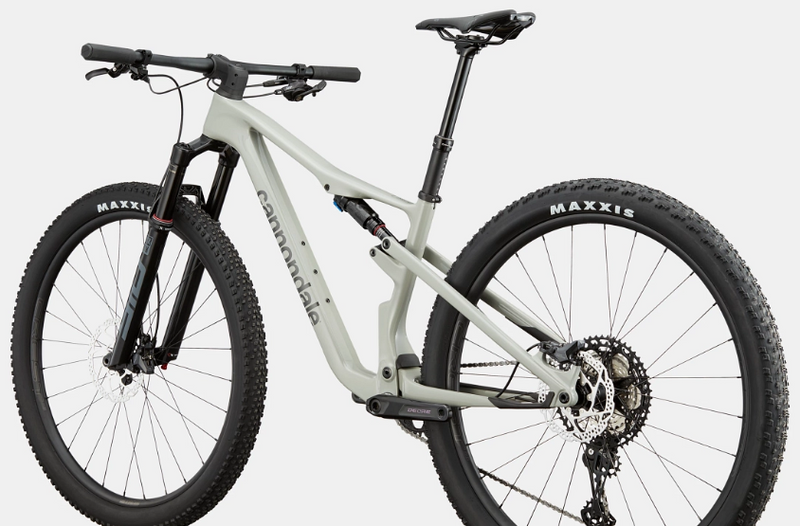

Cannondale Scalpel Full Suspension Cross Country Mountain Bikes

Regular
$ 4,899.97
Sale
$ 4,899.97
Regular
$ 6,500.00
Sold Out
Unit Price
per
Shipping calculated at checkout.
SKU C24304U20SM
- +

Details

Product Specification

Scalpel, Series 1 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
RockShox SID Select+ RL, 120mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset
RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45
HollowGram XC-S 27, lightweight, high-impact carbon, 27mm inner width, 28h, tubeless ready
(F) HollowGram, 15x110mm thru-axle / (R) HollowGram w/DT Swiss 350 internals, 12x148mm
Gran Forza, straight-pull
(F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready
Not Included
SRAM GX Eagle T-Type, 34T
SRAM DUB BSA 73mm MTB Wide
SRAM GX Eagle T-Type, 12-speed
SRAM GX Eagle, 10-52, T-Type, 12-speed
SRAM GX Eagle AXS, T-Type
SRAM AXS T-Type Pod Controller
Cannondale 1 Flat, Carbon, 31.8mm, 9° back, 760mm
Cannondale XC Silicone
Cannondale C1 Conceal, Alloy, 31.8, -6°
Acros ICR
SRAM Level Bronze Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors
Prologo Dimension NDR, STN rails
Fox Transfer SL Performance Elite, 31.6, 125mm (S), 150mm (M-XL)
SM, MD, LG, XL

Scalpel Geo CY24

Details

  • Platform: Scalpel

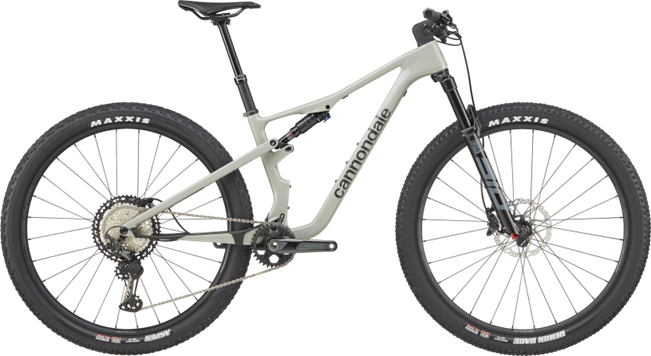

  • Model Name: Scalpel Carbon 3
  • Model Code: C24401M

Frameset

  • Frame: Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
  • Fork: Lefty Ocho, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset
  • Headset: Integrated, 1-1/8 to 1.5", sealed angular contact bearings
  • Rear Shock: Fox Float DPS Performance Elite EVOL, remote lockout, adjustable rebound

Drivetrain

  • Rear Derailleur: Shimano XT
  • Shifters: Shimano SLX, 12-speed
  • Chain: Shimano SLX, 12-speed
  • Crank: HollowGram, BB30a, OPI SpideRing, 34T, Ai offset
  • Rear Cogs: Shimano SLX, 10-51, 12-speed
  • Bottom Bracket: Cannondale Alloy PressFit30

Brakes

  • Brakes: Shimano Deore hydraulic disc, 160/160mm RT54 rotors
  • Brake Levers: Shimano Deore hydraulic disc

Wheels

  • Front Hub: Lefty 60
  • Rear Hub: Shimano MT510, 12x148mm thru-axle
  • Brake Type: Disc
  • Rims: Stan's NoTubes Crest S1, 28h, tubeless ready
  • Spokes: DT Swiss Champion
  • Tire Size: 2.25
  • Wheel Size: 29
  • Tires: (F) Schwalbe Racing Ray Performance, 29x2.25", Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29x2.25", Addix Compound, tubeless ready
  • Front Tire: Schwalbe Racing Ray Performance, 29x2.25", Addix Compound, tubeless ready
  • Rear Tire: Schwalbe Racing Ralph Performance, 29x2.25", Addix Compound, tubeless ready

Components

  • Handlebar: Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
  • Stem: Cannondale 3, 6061 Alloy, 31.8, 7°
  • Grips: Cannondale XC Silicone
  • Saddle: Prologo Dimension NRD, STN rails
  • Seatpost: Cannondale 2, 7075 Alloy, 31.6x400mm

Connectivity

  • Wheel Sensor: Cannondale Wheel Sensor

Please note that, based on component availability and other factors, specifications are subject to change without notice.

Details

  • Platform: Scalpel
  • Model Name: Scalpel Hi-MOD 1
  • Model Code: C24202M

Frameset

  • Frame: Scalpel Hi-Mod Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, 55mm chainline, Stash compatible, UDH hanger
  • Fork: Lefty Ocho Carbon, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset
  • Headset: Integrated Sealed Bearing, Tapered
  • Rear Shock: Fox Float SL Factory EVOL SV, Kashima, 190x42.5, custom tune, remote lockout

Drivetrain

  • Rear Derailleur: SRAM X01 Eagle AXS
  • Shifters: SRAM Eagle AXS, 12-speed
  • Chain: SRAM GX Eagle, 12-speed
  • Crank: SRAM X1 Carbon Eagle, 34T, 55mm chainline
  • Rear Cogs: SRAM XG-1295, X01 Eagle, 10-52, 12-speed
  • Bottom Bracket: SRAM DUB PF30 MTB83

Brakes

  • Brakes: SRAM Level TLM hydraulic disc, 160/160mm CenterLine rotors
  • Brake Levers: SRAM Level TLM hydraulic disc

Wheels

  • Rims: HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm inner width, tubeless ready
  • Spokes: DT Swiss Competition Race, straight-pull
  • Tire Size: 2.35
  • Wheel Size: 29
  • Hubs: (F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm
  • Tires: (F) Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
  • Front Tire: Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready / (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
  • Rear Tire: Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready

Components

  • Handlebar: Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
  • Stem: Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
  • Grips: Cannondale XC Silicone
  • Saddle: Prologo Dimension NDR, Tirox rails
  • Seatpost: Cannondale 1, UD Carbon, 31.6x400mm

Connectivity

  • Wheel Sensor: Cannondale Wheel Sensor

Extra

  • Extra 1: Stash Kit (Fabric 8-in-1 Mini Tool and Dynaplug tubeless puncture repair tool), Tubeless valve stems

Please note that, based on component availability and other factors, specifications are subject to change without notice.

Details

  • Platform: Scalpel
  • Model Name: Scalpel Hi-MOD Ultimate
  • Model Code: C24102M

Frameset

  • Frame: Scalpel Hi-Mod Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, 55mm chainline, Stash compatible
  • Fork: Lefty Ocho Carbon, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset
  • Headset: Integrated Sealed Bearing, Tapered
  • Rear Shock: Fox Float SL Factory EVOL SV, Kashima, 190x42.5, custom tune, remote lockout

Drivetrain

  • Rear Derailleur: SRAM XX1 Eagle AXS
  • Shifters: SRAM Eagle AXS, 12-speed
  • Chain: SRAM XX1 Eagle, Rainbow, 12-speed
  • Crank: SRAM XX1 Eagle DUB, 34T, 55mm chainline
  • Rear Cogs: SRAM XG-1299, XX1 Eagle, Rainbow, 10-52, 12-speed
  • Bottom Bracket: SRAM DUB PF30 MTB83

Brakes

  • Brakes: SRAM Level Ultimate hydraulic disc, 160/160mm CenterLine X rotors
  • Brake Levers: SRAM Level Ultimate hydraulic disc

Wheels

  • Rims: HollowGram XC-S 27, Lightweight, Hi-Impact Carbon, 27mm inner width, 28h, tubeless ready
  • Spokes: DT Swiss Competition Race, straight-pull
  • Tire Size: 2.35
  • Wheel Size: 29
  • Hubs: (F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss 350 Star Ratchet internals, 12x148mm thru-axle
  • Tires: (F) Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
  • Front Tire: Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready
  • Rear Tire: Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready

Components

  • Handlebar: Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
  • Stem: Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
  • Grips: Cannondale XC Silicone
  • Saddle: Prologo Dimension NDR, Tirox rails
  • Seatpost: Cannondale 1, UD Carbon, 31.6x400mm

Connectivity

  • Wheel Sensor: Cannondale Wheel Sensor

Extra

  • Extra 1: Stash Kit (Fabric 8-in-1 Mini Tool and Dynaplug tubeless puncture repair tool), Tubeless valve stems

Please note that, based on component availability and other factors, specifications are subject to change without notice.

DETAILS

  • Platform: Scalpel

  • Model Name: Scalpel 2

  • Model Code: C24304U

FRAMESET

  • Frame: Scalpel, Series 1 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native

  • Fork: RockShox SID Select+ RL, 120mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset

  • Headset: Acros ICR

  • Rear Shock: RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45

DRIVETRAIN

  • Rear Derailleur: SRAM GX Eagle AXS, T-Type

  • Shifters: SRAM AXS T-Type Pod Controller

  • Chain: SRAM GX Eagle T-Type, 12-speed

  • Crank: SRAM GX Eagle T-Type, 34T

  • Rear Cogs: SRAM GX Eagle, 10-52, T-Type, 12-speed

  • Bottom Bracket: SRAM DUB BSA 73mm MTB Wide

BRAKES

  • Brakes: SRAM Level Bronze Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors

  • Brake Levers: SRAM Level Bronze Stealth

WHEELS

  • Rims: HollowGram XC-S 27, lightweight, high-impact carbon, 27mm inner width, 28h, tubeless ready

  • Spokes: Gran Forza, straight-pull

  • Tire Size: 2.4

  • Wheel Size: 29

  • Hubs: (F) HollowGram, 15x110mm thru-axle / (R) HollowGram w/DT Swiss 350 internals, 12x148mm

  • Tires: (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready

COMPONENTS

  • Handlebar: Cannondale 1 Flat, Carbon, 31.8mm, 9° back, 760mm

  • Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°

  • Grips: Cannondale XC Silicone

  • Saddle: Prologo Dimension NDR, STN rails

  • Seatpost: Fox Transfer SL Performance Elite, 31.6, 125mm (S), 150mm (M-XL)



CONNECTIVITY

  • Wheel Sensor: Cannondale Wheel Sensor



SAFETY INFORMATION

  • Ingestion Hazard: WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

DETAILS

  • Platform: Scalpel

  • Model Name: Scalpel 4

  • Model Code: C24554U

FRAMESET

  • Frame: Scalpel, Series 1 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native

  • Fork: RockShox SID, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset

  • Headset: Acros ICR

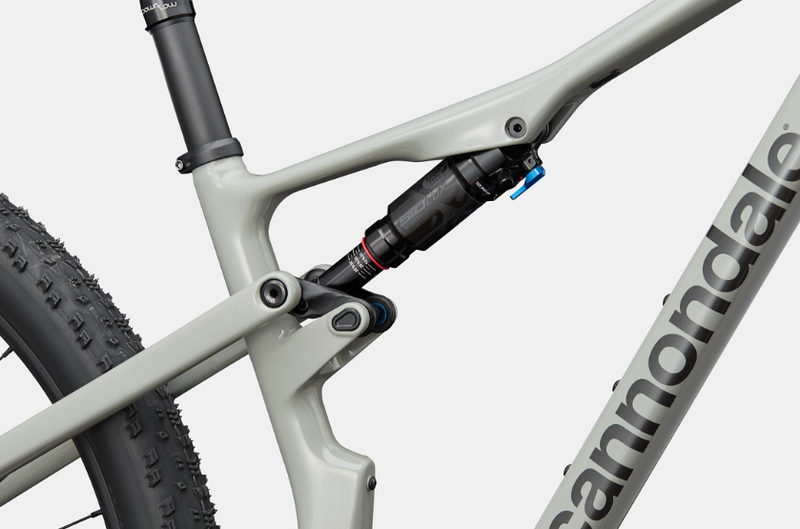

  • Rear Shock: RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45

DRIVETRAIN

  • Rear Derailleur: Shimano XT

  • Shifters: Shimano Deore 6100, 12-speed

  • ChainL Shimano Deore, 12-speed

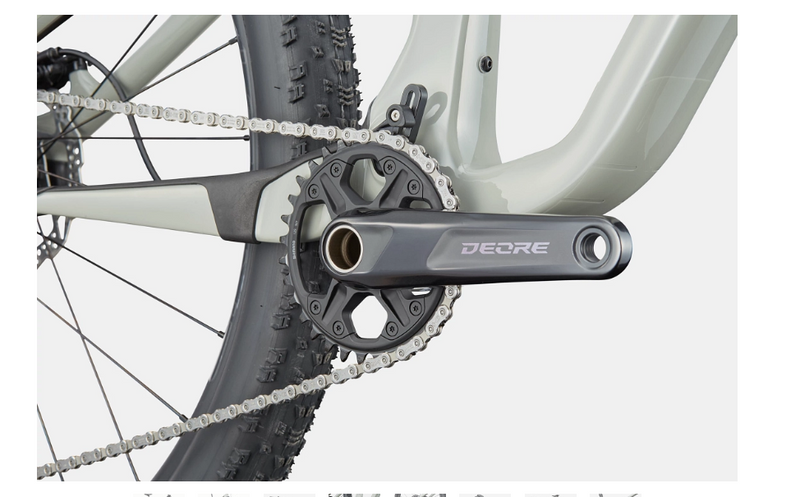

  • Crank: Shimano M5121, 32T

  • Rear Cogs: Shimano Deore, 10-51, 12-speed

  • Bottom Bracket: Shimano BSA 73mm

BRAKES

  • Brakes: Shimano MT501 hydraulic disc, 180/160mm RT54 rotors

  • Brake Levers: Shimano MT501 hydraulic disc

WHEELS

  • Rims: Stan's NoTubes Crest S2, 32h, tubeless ready

  • Spokes: Stainless Steel, 14g

  • Tire Size: 2.4

  • Wheel Size: 29

  • Hubs: (F) Shimano TC-500, 15x110mm thru-axle / (R) Shimano MT410B, 12x148mm thru-axle

  • Tires: (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready

COMPONENTS

  • Handlebar: Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm

  • Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°

  • Grips: Cannondale XC Silicone

  • Saddle: Prologo Dimension NDR, STN rails

  • Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)



CONNECTIVITY

  • Wheel Sensor: Cannondale Wheel Sensor



SAFETY INFORMATION

  • Ingestion Hazard: WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Scalpel Carbon 1

Hold on Tight 
Thrill ride. With the most advanced XC suspension and geometry, and rowdy-ready spec, the new Scalpel redefines cross-country speed – again.

Features- Superlight premium Series 1 Carbon frame with FlexPivot, 120mm travel, and Proportional Response-Tuned Suspension and Geometry
- Full Fox Factory equipped: Float Factory 34 SC 120mm fork, Float Factory EVOL SL shock, and Factory Transfer SL dropper post
- Sleek SystemBar XC-One integrated carbon handlebar and stem
- Super-fast DT Swiss XCR 1501 Spline carbon cross-country wheelset
- Light, precise, and tough SRAM XO Eagle AXS Transmission electronic wireless 12-speed group with Level Silver Stealth brakes


Model Description

Built for winning races and scorching trails, the Scalpel 1 is one of the fastest, lightest, and most capable mountain bikes on the planet. The frame is crafted with our advanced lightweight carbon construction. SRAM’s potent XO AXS wireless electronic group handles the shifting. It rolls on speedy DT-Swiss XRC 1501 Spline carbon wheels, and features the top-of-the-line Fox Float Factory 34 SC Fork, Float Factory SL shock, and Factory Transfer SL Seatpost.

What it's for

The thrill of speed. Winning World Cup XC and Marathon races. High-speed trail slaying.

Highlights

  • Superlight Carbon frame with FlexPivot, 120mm travel, and Proportional Response-Tuned Suspension and Geometry
  • Full Fox Factory equipped: Float Factory 34 SC 120mm fork, Float Factory EVOL SL shock, and Factory Transfer SL dropper post
  • Sleek SystemBar XC-One integrated carbon handlebar and stem
  • Super-fast DT Swiss XRC 1501 Spline carbon cross-country wheelset
  • Light, precise, and tough SRAM XO Eagle AXS Transmission electronic wireless 12-speed group with Level Silver Stealth brakesSpecs

Details

  •

    Platform

    Scalpel

  • Model Name

    Scalpel 1

  • Model Code

    C24254U

Frameset

  • Frame

    Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native

  • Fork

    Fox Float Factory 34 SC, Kashima, 120mm, 15x110mm thru-axle, tapered steerer, 44mm offset

  • Headset

    Acros ICR

  • Rear Shock

    Fox Float SL Factory EVOL SV, Kashima, 190x45, custom tune

Drivetrain

  • Rear Derailleur

    SRAM XO Eagle AXS, T-Type

  • Shifters

    SRAM AXS T-Type Pod Controller

  • Chain

    SRAM XO, T-Type, 12-speed

  • Crank

    SRAM XO T-Type, 34T

  • Rear Cogs

    SRAM XO Eagle, 10-52, T-Type, 12-speed

  • Bottom Bracket

    SRAM DUB BSA 73mm MTB Wide

Brakes

  • Brakes

    SRAM Level Silver Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors

  • Brake Levers

    SRAM Level Silver Stealth

Wheels

  • Rims

    DT Swiss XRC 1501 SPLINE ONE, carbon, 30mm inner width, hookless, TSS tubeless ready

  • Spokes

    DT Competition Race, straight pull

  • Tire Size

    2.4

  • Wheel Size

    29

  • Hubs

    DT Swiss 240 15x110, 6-bolt (F) / 240 Ratchet EXP 36, 6-bolt, XD driver (R)

  • Tires

    (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready

Components

  • Handlebar

    SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8" clamp

  • Stem

    SystemBar XC-One Flat, carbon integrated bar/stem

  • Grips

    Cannondale XC Silicone

  • Saddle

    Prologo Dimension NDR, Tirox rails

  • Seatpost

    Fox Transfer SL Factory, Kashima, 31.6, 125mm (S), 150mm (M-XL)

Extra

  • Extra 1

    Tubeless valves, SRAM AXS charger

Safety Information

  • Ingestion Hazard

    WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
