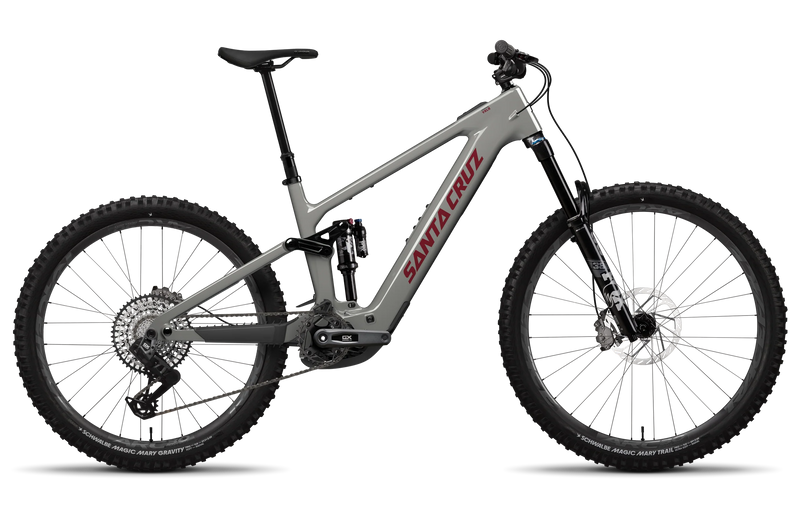

Santa Cruz Vala Electric Mountain Bike
- Regular
- $ 11,499.00
- Sale
- $ 11,499.00
- Regular
- $ 11,499.00
- Unit Price
- per
Winter Clearance and Past Season Bikes and Gear Up to 60% off. Please contact us with anything you need.
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension, and the finest quality construction, as always.
While this bike might look like something you’ve seen before, we found ways to make the four-bar suspension system work better, last longer, and a joy to own. We sweat the little things so you don’t have to.
A. Stiff one-piece bridged link for chassis stiffness and protecting the shock from side loads. The stuff that causes other four-bar bikes to go soft.
B. Seatstay bridge adds rigidity so the suspension can smoothly track rather than twisting.
Main pivots run on the same legendary preloading collet axle and expanding wedge system that Santa Cruz introduced and is copied by many bike brands now. Axles can’t back out and are keyed for worry-free removal.
Main pivots and seat tube pivot are the same hardware that we use across other bikes. All instructions can be found on our website and all spare parts you need are available in our webshop.
Four oversized bearings in the chainstay pivots and an axle that holds everything captive (no workshop floor explosions). It doesn’t require a blind puller tool to remove bearings for service.
We use larger, more robust bearings than most other brands. Bigger ball bearings are less sensitive to contamination. So the bike will ride better for longer.
And like all of our bikes we offer free bearings for the lifetime of the original owner.
A. Geo flip chip hardware is captive so there’s no fear of dropping small parts on the ground. To adjust, just loosen it, flip it, and retorque. It’s easy enough to do on the side of the trail with just one Allen key.
B. Threads at chainstay, seatstay pivots, and shock mount are all replaceable. So if you do damage by being a ham-fisted mechanic it’s a simple fix, not a frame-damaging one.
C. All 5mm Allen key broaches throughout, so it's easy to do quick bolt checks. It’s so easy to work on the bike that even the marketing people can do it (if we hide the sharp tools from them), and it requires no specialist tools.
Available in: C & CC Carbon
Wheel Size: MX
Front Travel: 160mm
Rear Travel: 150mm
Drive unit: NEW Bosch Performance Line CX
Battery Size: 600 Wh
This is for the Gloss Grey and Midnight Green colors.
Frame | Carbon C MX, 4-Bar Suspension |
---|---|
Fork | Fox 38 Float Performance Elite, GRIP X2 Damper, 160mm Travel |
Rear Shock | Fox Float X Performance Elite, 205x60mm |
Headset | IS Integrated Headset |
Shifters | SRAM AXS Pod Bridge, 12-Speed |
Front Derailleur | They're All Gone |
Rear Derailleur | SRAM GX AXS Eagle T-Type, 12-Speed |
Crankset | SRAM GX Eagle Cranks, 160mm |
Bottom Bracket | - |
Chain | SRAM GX Eagle T-Type, Flattop, 12-Speed |
Cassette | SRAM GX Eagle T-Type, 10-50T |
Brakes | SRAM Maven Bronze Hydraulic Disc, SRAM HS2 200mm Rotors |
Wheelset | Race Face ARC 30 HD Rims, E13 SL Boost Hubs |
Tires | Schwalbe Magic Mary 29x2.5"/27.5x2.5" |
Handlebar | OneUp Aluminum Bar, 35mm Rise, 800mm |
Stem | OneUp Stem 42mm |
Grips/Bar Tape | Santa Cruz Bicycles House Grips |
Seatpost | OneUp Dropper, 31.6mm |
Seatclamp | Bolt-Type |
Saddle | SDG Bel-Air V3, Max Lux-Alloy Atmos |
Intended Use | All-Mountain/Enduro |
Motor | Bosch Performance CX BDU38 |
Battery | Bosch PowerTube Battery 600Wh |
Display | Integrated Display |
This is for the Gloss Grey and Midnight Green colors.
Frame
Material Carbon CC
Frame Carbon CC MX 150mm Travel, 4-Bar
Travel 150mm
Weight 46.53lbs / 21.1kg
Wheel Size MX
Suspension
Fork FOX 38 Factory, Grip X2, 160mm
Shock FOX Float X Factory, 205x60
Drivetrain
Bottom Bracket N/A
Cassette SRAM X0 1295 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset SRAM X0 Eagle Cranks, 160mm
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Brakes
Brakes SRAM Maven Silver
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Carbon Bar
Headset Cane Creek 50 IS Integrated Headset
Saddle WTB Silverado Medium Fusion, CroMo SL
Seatpost OneUp Dropper Post, 31.6
Stem OneUp Enduro Stem, 42mm
Wheels
Front Rim Reserve 30|HD Carbon
Front Hub DT Swiss 350, 15x110, 6-Bolt, 28h
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim Reserve 30|HD Carbon
Rear Hub DT Swiss 350 DEG, 12x148, XD, 6-Bolt, 72t, 28h
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown
Valves Reserve Fillmore Valves
Ebike Specs
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance CX BDU38
Bottom Bracket Shell EMTB
Rear Brake Mount 200mm PM
Shock Length 205mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount No Compatibility
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 151mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Shock Stroke 60mm
Suspension System Four-bar
UDH Compatible Yes
Water Bottle Mounts 1
This is for the Gloss Grey and Midnight Green colors.
Frame
Material Carbon C
Frame Carbon C MX 150mm Travel, 4-Bar
Travel 150mm
Weight 48.93lbs / 22.19kg
Wheel Size MX
Suspension
Fork FOX 38 Float Performance, Grip, 160mm
Shock FOX Float X Performance, 205x60
Drivetrain
Bottom Bracket N/A
Cassette SRAM XS 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset E13 Helix eSpec, 160mm
Rear Derailleur SRAM 90 Eagle T-Type, 12spd
Brakes
Brakes SRAM Maven Base
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars OneUp Aluminum Bar
Headset Cane Creek 10 IS Integrated Headset
Saddle SDG Bel-Air V3, Max Lux-Alloy
Seatpost OneUp Dropper Post, 31.6
Stem OneUp Enduro Stem, 42mm
Wheels
Front Rim Reserve 30|HD AL
Front Hub E13 SL, 15x110, 6-Bolt, 32h
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim Reserve 30|HD AL
Rear Hub E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra DoubleDown
Valves Reserve Fillmore Valves
Ebike
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance CX BDU38
Specs
Bottom Bracket Shell EMTB
Rear Brake Mount 200mm PM
Shock Length 205mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount No Compatibility
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 151mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Shock Stroke 60mm
Suspension System Four-bar
UDH Compatible Yes
Water Bottle Mounts 1
This is for the Gloss Grey and Midnight Green colors.
Frame
Material Aluminum
Frame Aluminum MX 150mm Travel, 4-Bar
Travel 150mm
Weight 53.68lbs / 24.35kg
Wheel Size MX
Suspension
Fork RockShox Zeb Base, 160mm
Shock RockShox Super Deluxe Base, 205x60
Drivetrain
Bottom Bracket N/A
Cassette SRAM XS 1270 Eagle T-Type, 10-52t
Chain SRAM 70 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset E13 Helix eSpec, 160mm
Rear Derailleur SRAM 70 Eagle T-Type, 12spd
Brakes
Brakes SRAM DB8
Front Rotor SRAM Centerline, 220mm
Rear Rotor SRAM Centerline, 200mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Bicycles Aluminum Bar, 35x800, 30mm Rise
Headset FSA IS-2/47/42 ACB
Saddle WTB Silverado Medium, Steel
Seatpost SDG Tellis Dropper, 31.6
Stem OneUp Enduro Stem, 42mm
Wheels
Front Rim Reserve 30|HD AL
Front Hub SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim Reserve 30|HD AL
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Tire Maxxis Minion DHRII, 27.5"x2.5", DoubleDown
Valves Reserve Fillmore Valves
Ebike
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance CX BDU38
Specs
Bottom Bracket Shell EMTB
Rear Brake Mount 200mm PM
Shock Length 205mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount No Compatibility
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 150mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Shock Stroke 60mm
Suspension System Four-bar
UDH Compatible Yes
Water Bottle Mounts 1
