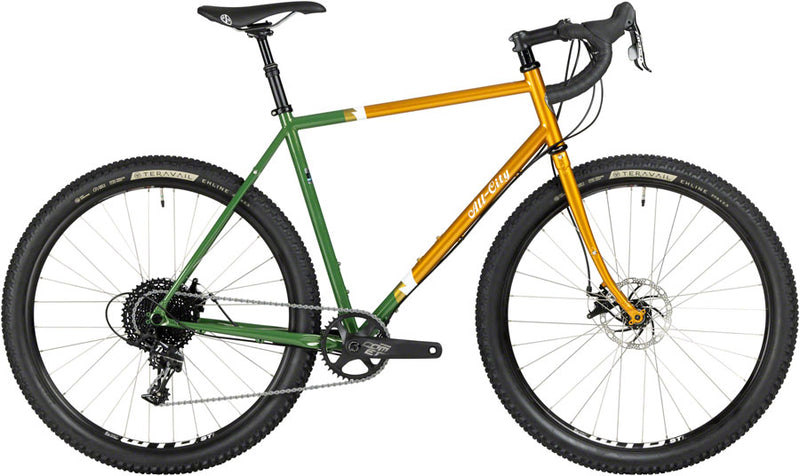

All-City Gorilla Monsoon Bike

Regular
$ 1,599.99
Sale
$ 1,599.99
Regular
$ 2,000.00
Sold Out
Unit Price
per
Shipping calculated at checkout.
SKU
- +

Details

Designed to handle double track, gravel, bikecamping, and just plain chasing good times, this nimble, do-it-all dirt solution is ready to send cross racers, dirt tourists, and backcountry explorers far into the unknown with comfort, style, and elegance. Available in seven frame sizes — including 43cm for the first time — the Gorilla Monsoon is tweaked for long days in the saddle and built around 27.5 x 2.4" tires with clearance for 700c x 42mm.

  • Made from All-City's 612 Select steel tubing with signature thru-axle dropouts
  • Features a matching bi-plane crown steel fork
  • Mounts for front and rear racks and fenders
  • Flat-mount disc brakes
  • Three water bottle mounts on the frame
  • Dropper seatpost



52 APEX

  • Fork Material: Steel
  • Color: Tangerine Evergreen
  • Wheel Size: 650b
  • Brake Type: Disc
  • Platform: Gorilla Monsoon
  • Fork Type: Rigid
  • Rear Axle: 12mm Thru x 142mm
  • Frame Material: Steel
  • TT (Effective): 545
  • Defined Color: Multi-Color
  • Mfg Size: 52
  • Front Axle: 12mm Thru x 100mm
  • Frame Type: Rigid

Frameset

Frame

612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated

Fork

612 Select Chromoly Steel, All-City Signature fork ends, Bi-Wing Crown, TIG Welded and Brazed, E.D. Coated

Drivetrain

Crankset

FSA Comet V-Drive 38t, MegaEXO

Bottom Bracket

FSA BB7100

Front Derailleur

N/A

Rear Derailleur

SRAM Apex

Cassette

SunRace CSMS8 11-speed, 11-42t

Chain

KMC X11 EPT

Components

Grips / Bar Tape

All-City Embossed Black Tape

Handlebar

JD RA48A

Stem

JD ST123A, 31.8mm, ±7° Rise

Headset

Cane Creek 40 Series

Shifter

SRAM Apex

Brake Levers

SRAM Apex

Brakes

Tektro MD-C550

Rotors

Tektro TR160-22 160mm F/R 6-Bolt

Saddle

All-City Gonzo

Seatpost

TranzX JD-TSI01L, 27.2, 350mm L, 50mm drop

Wheels

Front Hub

Novatec D981SB 12x100 32h

Rear Hub

Novatec D982TSB 12x142 32h

Rims

WTB ST i25 TCS 2.0, 32h

Tires

WTB Riddler, 27.5 x 2.4", TCS Light/Fast

Tubes

included/installed

Other

Pedals

N/A

Misc

-

  • Specifications are subject to change without notice



Frame measurements (mm) 43cm 46cm 49cm 52cm 55cm 58cm 61cm
A. BB Drop 62.5 62.5 62.5 62.5 62.5 62.5 62.5
B. Chainstay Length 430 430 430 430 430 430 430
C. Fork Length - Axle to Crown 392 392 392 392 392 392 392
D. Fork Offset 50 50 50 47 47 47 47
E. Head Tube Angle (deg) 70 71 71 71.5 71.5 71.5 71.5
F. Headtube Length 115 125 135 155 175 200 225
G. Reach 357 363 368 374 382 389 402
H. Seat Tube Angle (deg) 74.5 74 74 73.5 73 72.5 72.5
I. Seat Tube Length - Center to Top 415 445 475 510 540 570 600
J. Stack 534 547 557 579 598 621 645
K. Standover 711 735.5 758.2 788.3 813.4 840.1 866.8
L. Top Tube Length (Effective) 505 520 528 545 565 585 605
M. Wheelbase 1007 1008 1017 1021 1036 1051 1072
Component measurements (mm)
Crank Arm Length 165 165 170 170 170 175 175
Handlebar Width 400 400 420 440 440 460 460
Stem Length 70 80 90 100 100 110 120
