DESCRIPTION

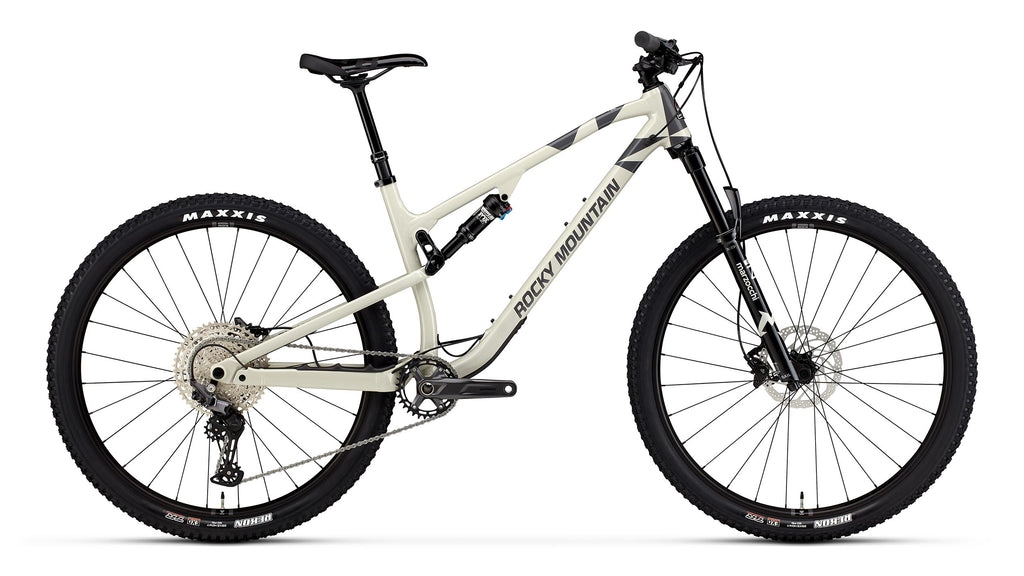

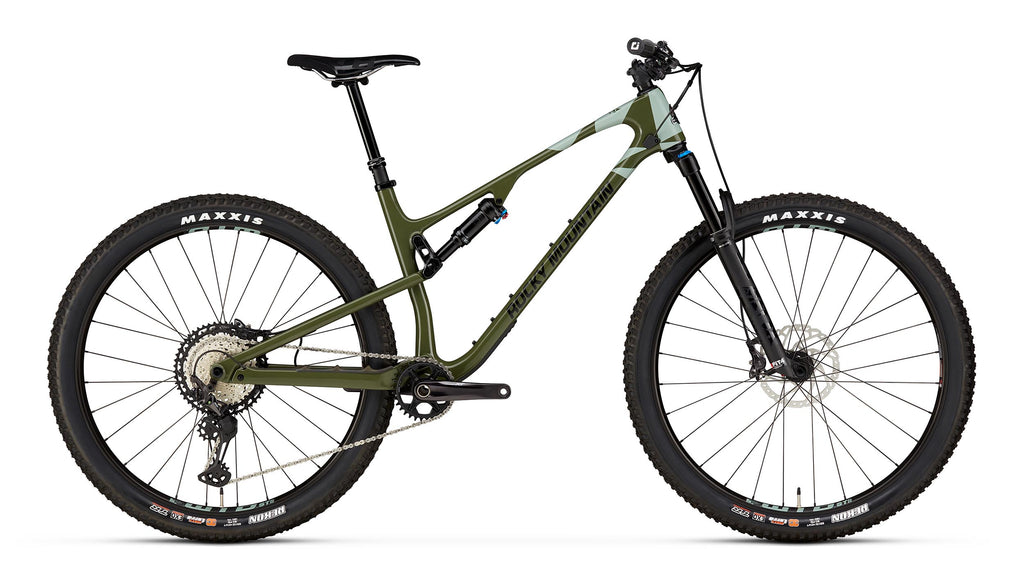

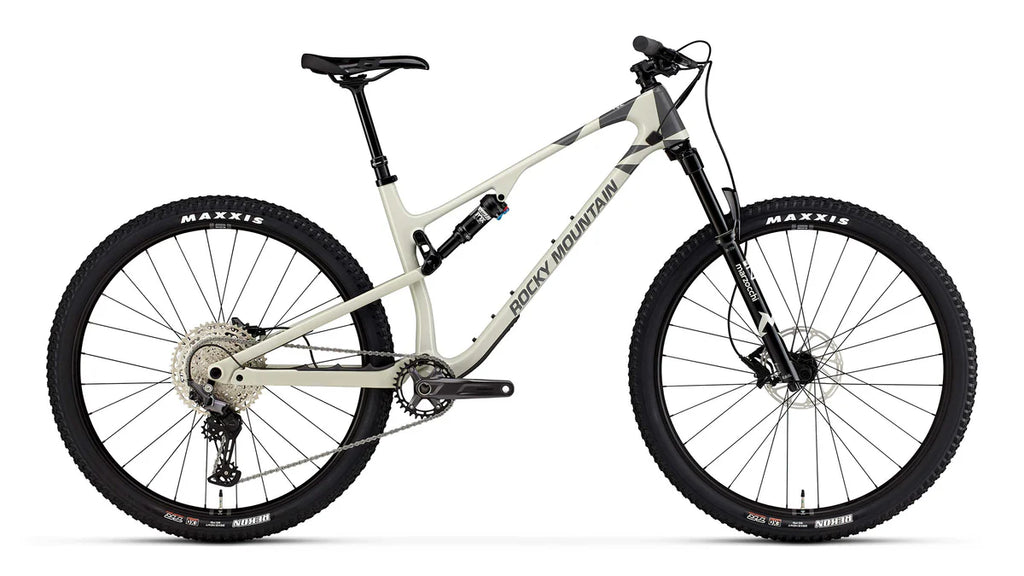

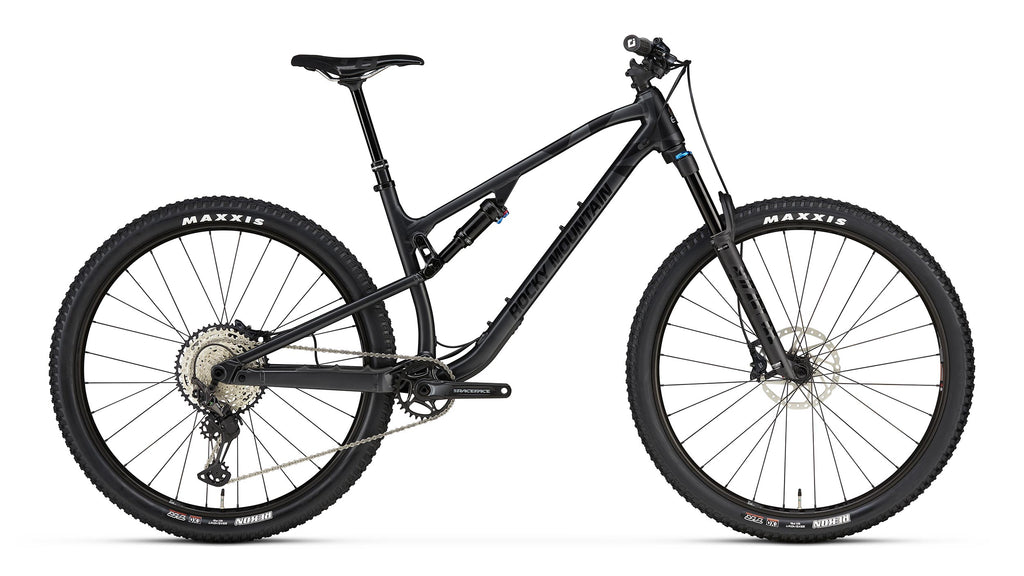

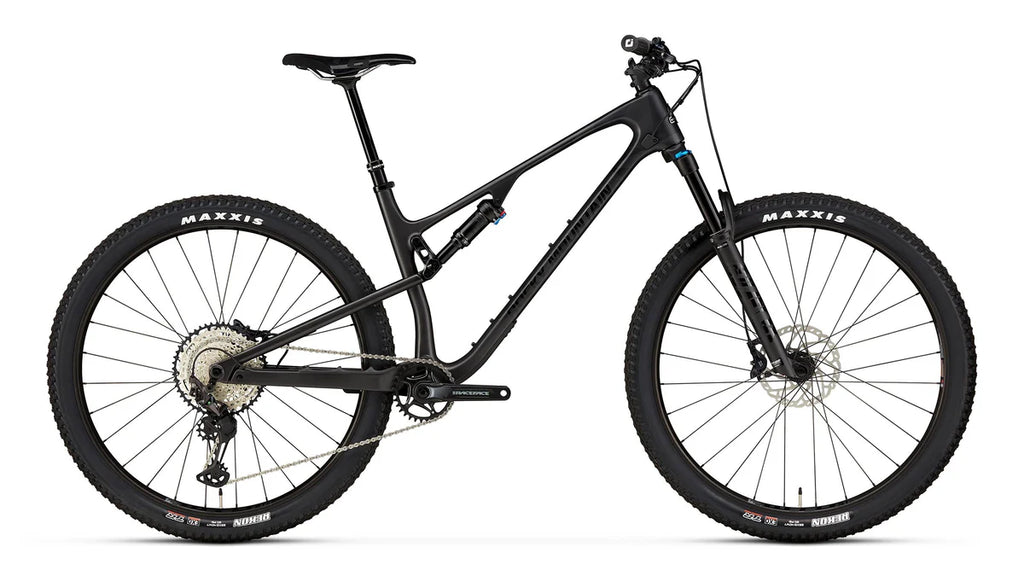

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.
SPECIFICATIONS
Frame: SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry + Suspension Rate | 120mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork:Fox 34 Float Performance Elite 130mm | FIT4 Damper | 44mm Offset
Front Travel:130
Rear Shock:Fox Float DPS Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Rear Travel:120
Headset:FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem:Rocky Mountain 35 XC | 5° Rise | All Sizes = 50m
Handelbar:Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips:ODI Elite Pro Lock On
Brakes:Shimano XT 2 Piston | Metal Pads | F:Shimano RT66 180mm | R:Shimano RT66 180mm
Shifters:Shimano XT
Rear Derailleur:Shimano XT
Cranks & Chainring:Shimano XT | 32T | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM - XL = 170mm
Bottom Bracket:Shimano SM-BB71
Cassette:Shimano XT 10-51T
Chain:Shimano M8100
Front Hub:Rocky Mountain Sealed Boost 15mm
Rear Hub:DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes:DT Swiss Competition 2.0/1.8/2.0
Rims:WTB ST Light i27 TCS 2.0 Tubeless | 28H | Tubeless Ready - Tape / Valves Incl
Tires:F: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4 // R: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4
Seatpost:Race Face Turbine R (by Fox) Dropper 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Saddle:WTB Silverado Race 142
Weight:27.5 LBS|12.5 KGS
