Details
Intended use: Gravel
Designed to make every ride an adventure, the Solo is the perfect tool to escape, log some miles, and make multi-day rides a blast.
Frame
Rocky Mountain Smoothwall Carbon | BB386 | Zero Stack Tapered Headtube | Fully Guided Internal Cable Routing | Dropper Post Compatible | 142mm Dropouts | Sram UDH Compatible Rear Triangle
Fork
Rocky Mountain Carbon Gravel | Full Carbon Steerer |100 x 12mm Axle |3 Rack & Fender Mounts
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 31.8 XC | 7° Rise | XS = 60mm | SM = 70mm | MD = 80mm |LG = 90mm | XL = 100mm

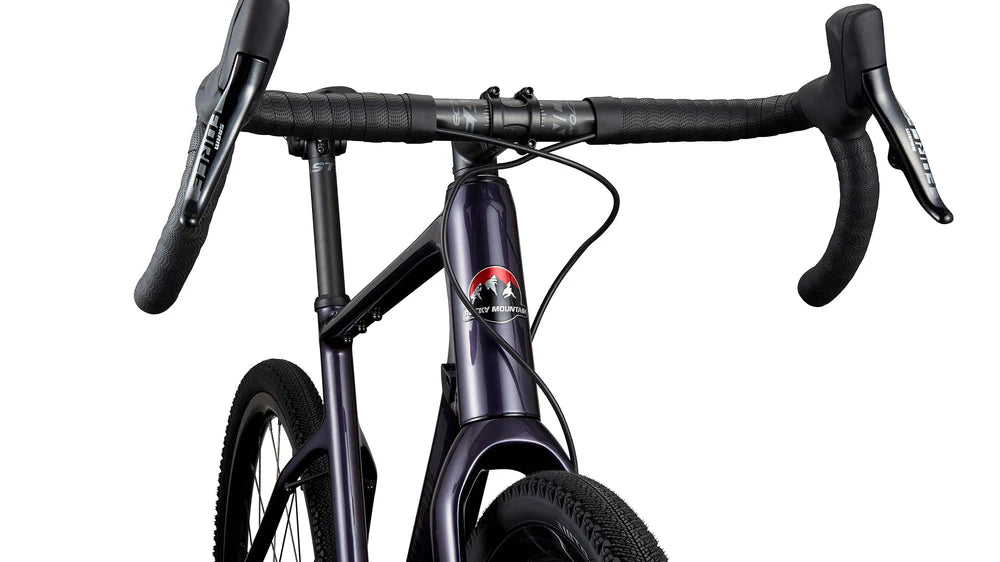

Handlebar
Easton EC70 AX | 80mm Reach | 120mm Drop | Flare 16° | Width: 420mm XS | 440mm SM-MD | 460mm LG-XL
Grips
Rocky Mountain Gel Bar Tape

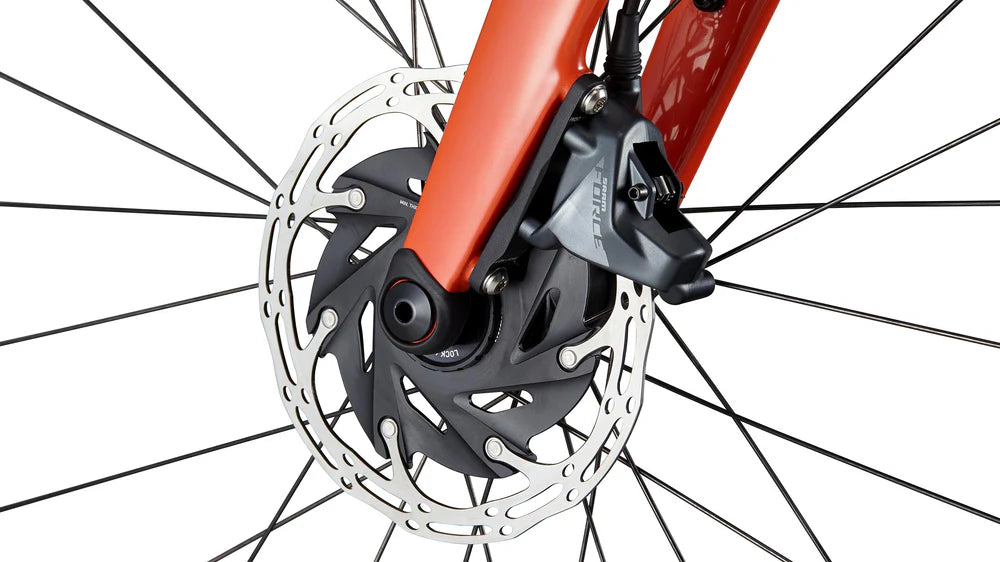

Brakes
Sram Force | F:Sram Centerline XR 160mm | R:Sram Centerline XR 160mm
Shifters
Sram Force AXS

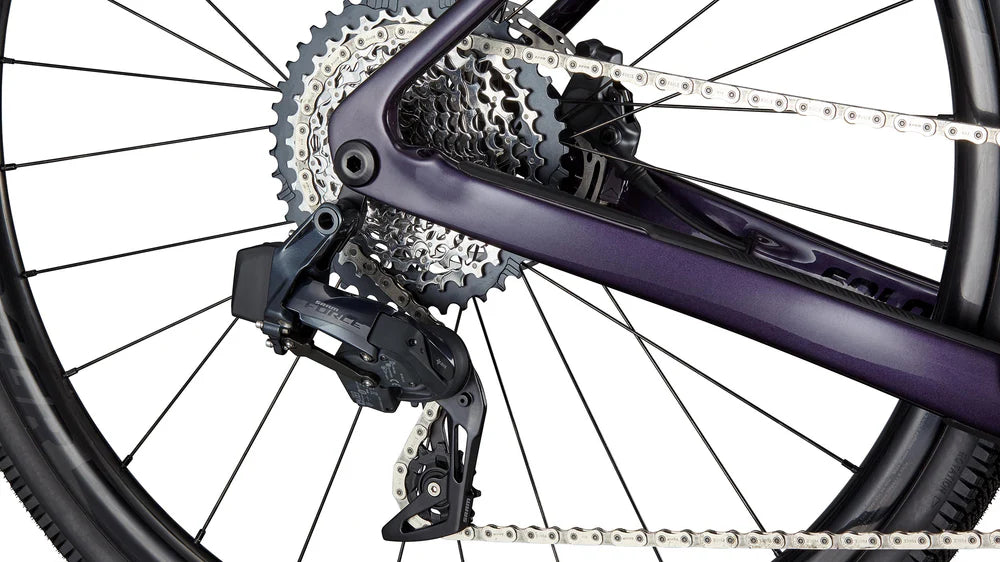

Rear Derailleur
Sram Force XPLR AXS
Cranks & Chainring
Sram Force 1 Wide Carbon | 42T | DUB Spindle | Crankarm Length: XS-SM = 170mm | MD = 172.5mm | LG-XL = 175mm
Bottom Bracket
Sram BB386 DUB Wide
Cassette
Sram XPLR XG-1271 10-44T
Chain
Sram Force 12s
Front Hub
Rocky Mountain Sealed 12mm
Rear Hub
DT Swiss 350 142mm | 36T Star-Ratchet
Spokes
DT Swiss Revolution 2.0/1.5/2.0
Rims
Rocky Mountain 24GR Carbon | 28H | Tubeless Ready - Tape / Valves Incl
Tires
F: WTB Venture TCS Light Fast Rolling 700 x 40c // R: WTB Venture TCS Light Fast Rolling 700 x 40c
Seatpost
Easton EC70 27.2mm
Saddle
WTB Silverado Race 142
Weight
18.2 LBS|8.2 KGS
Notes
We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
|
|
XS |
SM |
MD |
LG |
XL |
|
Top Tube Horizontal (mm) |
520 |
540 |
560 |
580 |
605 |
|
Head Tube Angle (deg) |
70 |
70.5 |
71 |
71.5 |
71.5 |
|
Head Tube Length (mm) |
100 |
130 |
150 |
185 |
210 |
|
Seat Tube Angle (deg) |
75 |
74.5 |
74 |
73.5 |
73 |
|
Seat Tube Length (mm) |
414 |
452 |
490 |
528 |
566 |
|
Rear Centre (mm) |
425 |
425 |
425 |
425 |
425 |
|
Bottom Bracket Drop (mm) |
78 |
77 |
75 |
75 |
75 |
|
Reach (mm) |
375.8 |
382.66 |
391.9 |
395.9 |
407.7 |
|
Stack (mm) |
538.2 |
567.4 |
586.2 |
621.4 |
645.1 |
|
Standover Height (mm) |
754 |
787 |
814 |
850 |
877 |
|
Wheelbase (mm) |
1021 |
1034 |
1045 |
1056 |
1076 |
Standover height is measured 200 mm in front of the bottom bracket.
Size Chart
These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.
XS: 152.5 - 165 cm / 5’0” - 5’5”
S: 157.5 - 170 cm / 5’2” - 5’7”
M: 167.5 - 177.5 cm / 5’6” - 5’10”
L: 175 - 188 cm / 5’9” - 6’2”
XL: 185.5 - 198 cm / 6’1” - 6’6”
