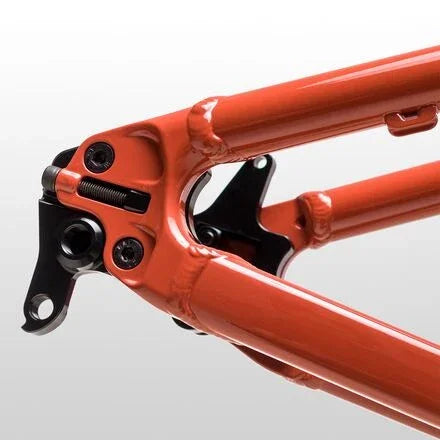

The Santa Cruz Jackal is the dirt jump frame built for jump lines, pump tracks and urban riding. The Jackal 4.1 is made from 6000-series aluminum and comes in just under 5 lb. Santa Cruz overbuilt it to take a beating, then kept it light enough to throw around. An asymmetric yoke allows very short chainstays, and sliding rear dropouts let you run it geared or singlespeed.
- Frame: 6000-series aluminum hardtail, 26" wheels, lifetime warranty
- Fork compatibility: 100–160mm travel
- Head tube: Tapered (ZS44/28.6 upper, EC49/40 lower). Headset not included.

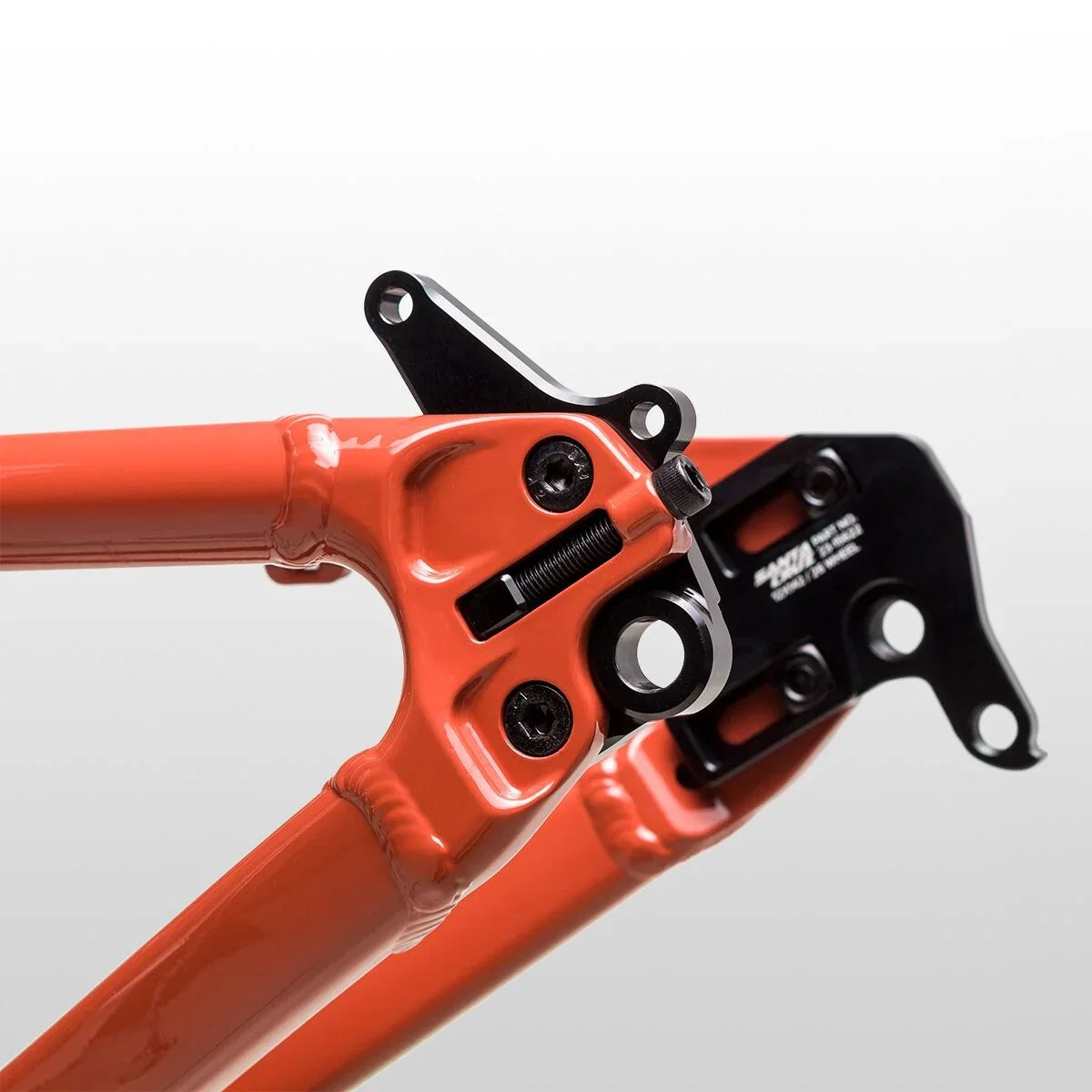

- Rear axle: Ships with 12x142mm sliding dropouts. 10x135mm QR dropouts are available.
- Bottom bracket: 73mm English threaded, ISCG-05 tabs, 50mm chainline
- Seatpost: 30.9mm, 34.9mm clamp
- Brake: Post-mount disc, 180mm max rotor
- Tire clearance: 26 x 2.5"
- Routing: External

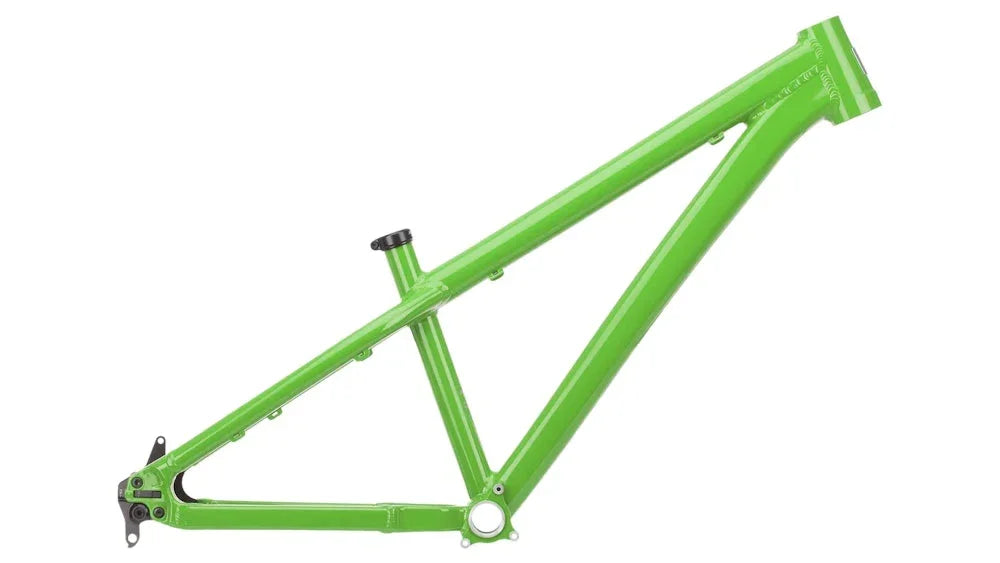

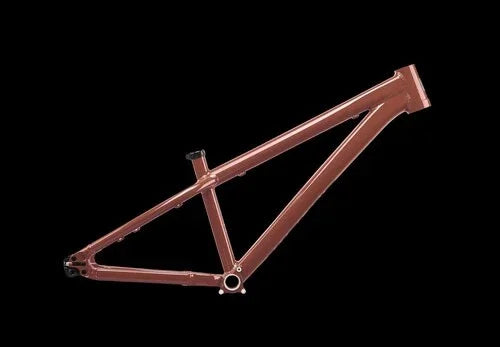

Available: Medium in Gloss Bacon (MY22) and Large in Gloss Green (MY23). Medium fits riders about 5'0"–5'9" and Large about 5'9"–6'6".
This is a frame only. Fork, headset, wheels and build kit are sold separately.
