Amflow

Amflow PL Carbon

$ 5,997.00 $ 7,499.00 Save 20%
As low as $ 166.58/mo* with Shop Pay
Choose your buildAmflow7 builds
Your size Check availability across builds
Amflow PX Carbon Amflow PX Carbon $ 7,999.00 Available Sizes MLXLXXL Amflow PX Carbon Pro Amflow PX Carbon Pro $ 10,199.00 Available Sizes MLXLXXL Amflow PR Carbon Amflow PR Carbon $ 4,999.00 Available Sizes MLXLXXL Amflow PR Carbon Pro Amflow PR Carbon Pro $ 6,799.00 Available Sizes MLXLXXL Amflow PL Carbon Amflow PL Carbon $ 5,997.00 Available Sizes MLXL Amflow PL Carbon Pro Amflow PL Carbon Pro $ 9,997.00 Available Sizes MXL Amflow TL Carbon Amflow TL Carbon $ 3,899.00 Available Sizes S/ML/XL
Size: M

SKU: 6937224119796

Checking pickup availability...

Loading store availability...

Available to Order — Estimated to Ship in 2+ Months
Sizes M, L and XL can be ordered now direct from Amflow, with an estimated ship time of more than 2 months. Order today to lock in your size — we'll confirm timing, then build, check and ship your bike (or set it aside for pickup) the moment it lands.

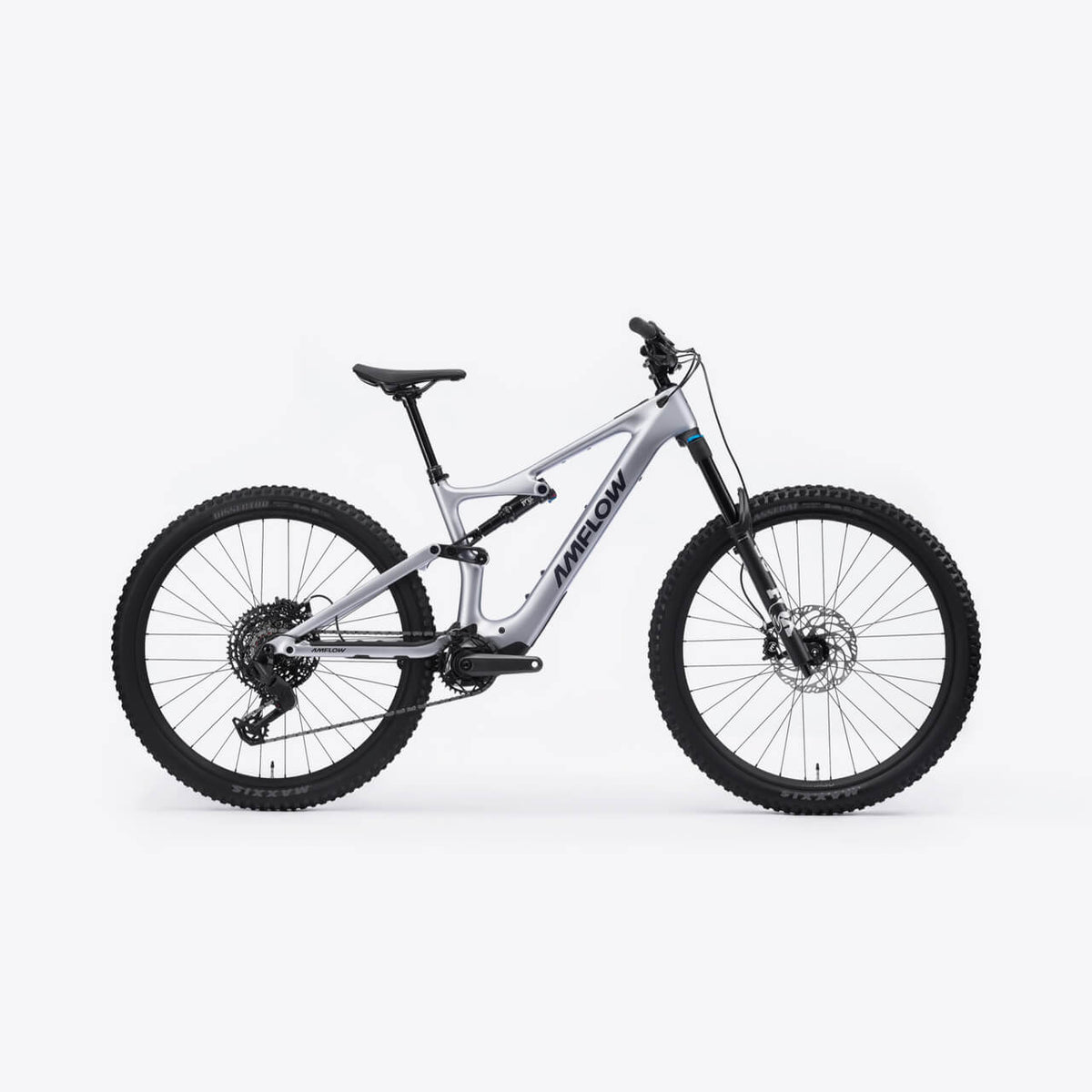

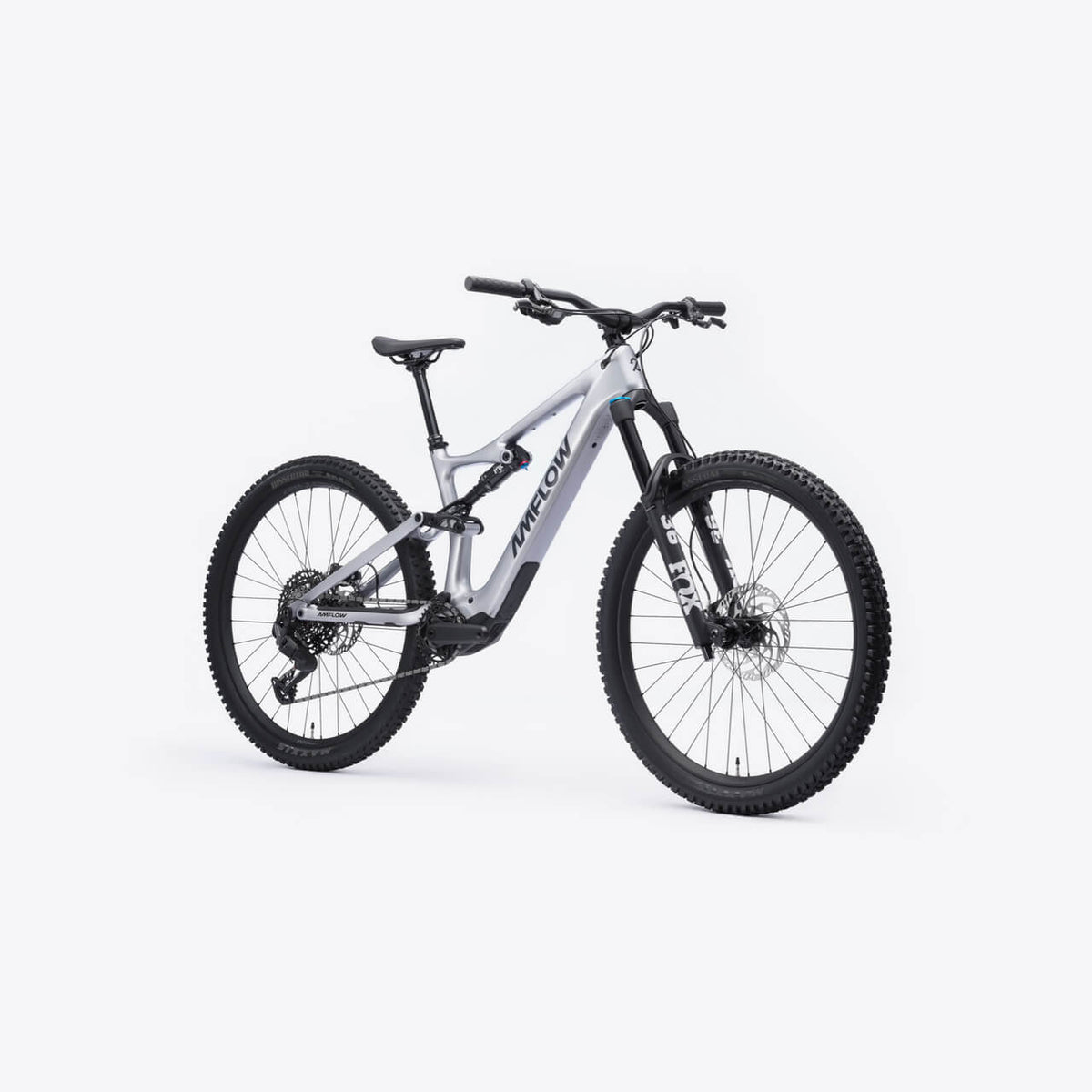

Amflow PL Carbon

120Nm • 1,000W • 800Wh

The bike that launched the Avinox era. DJI Avinox M1 power, an 800Wh integrated battery and a full-carbon 150mm trail frame — serious full-power performance at a serious price.

Want the flagship build? See the PL Carbon Pro, or compare every Amflow build.

Key Highlights

DJI Avinox M1 Drive Unit — 105Nm continuous, Boost to 120Nm / 1,000W. Five assist modes: Eco, Trail, Turbo, Auto and Boost.

800Wh Integrated Battery — Fast GaN charger (12A / 508W) for quick turnarounds.

Full-Carbon Frame — 150mm rear travel, 29" front, 29" or 27.5" rear compatible.

Smart Everything — 2" OLED touchscreen in the top tube, dual wireless controllers, Avinox app.

Amflow PL Carbon Specs

Motor
DJI Avinox M1 — 105Nm continuous, Boost up to 120Nm / 1,000W

Battery
Avinox 800Wh integrated

Charger
Fast GaN 12A / 508W

Display
2" OLED touchscreen, dual wireless controllers

Frame
Amflow PL Carbon, 150mm rear travel

Fork
FOX 36 Performance, 160mm travel, GRIP damper, 15x110mm, 44mm rake

Rear Shock
FOX FLOAT Performance, trunnion 185x55mm, custom tune

Rear Derailleur / Shifter
SRAM GX Eagle 12-speed

Cassette
SRAM PG-1230, 11-50t

Crankset
Avinox SL, 34T — 155mm (M/L), 160mm (XL)

Brakes
Magura MT5 4-piston, HC levers, 203mm MDR-C rotors front and rear

Wheels
Amflow HMA-30 alloy, 29", 30mm internal, tubeless ready

Tires
Maxxis Assegai 29x2.5" WT front / Maxxis Dissector 29x2.4" WT rear

Dropper Post
KS Rage-i, 150mm (M), 170mm (L), 190mm (XL)

Color
Satin Silver

Who This Bike Is For

Riders who want proven Avinox full-power performance for the best value in the lineup.

• 120Nm / 1,000W Avinox M1
• 800Wh battery with fast charging
• 150mm carbon trail chassis
