Blur X0 AXS Trail RSV

A Fair Advantage

Each weekend, at race venues the world over, there is one rider who gets hoisted upon the shoulders of the crowd and carried to the podium. Or at least leaves with a water bottle as their prize. And between each of those races, innumerable wannabes are putting in the hours on the rollers and in the gym all because they want to feel what it’s like to take the win. They know that to beat the pack every advantage needs to be acquired. That’s where the Blur fits in.

We tapped into everything we’ve learned from years of making the highest quality carbon full-suspension bikes so that we could put as little (weight) as possible into the Blur frame. The trim frame and super-efficient Superlight™ suspension will be the key to translating your input into competition beating performances.

But the Blur isn't just for the short track. Two water bottle mounts within the front triangle should keep chuggers happy. And the high quality fit, finish and carbon construction promises multi-day racers a worry free existence—meaning there's no fiddly proprietary parts that could leave you stranded in a Cape Epic or Breck Epic campsite. The carbon frame, while being light, is made to go the distance and as always the legendary Santa Cruz lifetime warranty and Rider Support team has got your back.

The Blur isn’t guaranteed to make you a race winner but being the lightest, full-suspension carbon XC bike we’ve ever made (Approx 23lb as complete. Blur frame is 289g lighter than the previous model) it might be the difference between claiming first place...or just crossing the line.

Geo to match

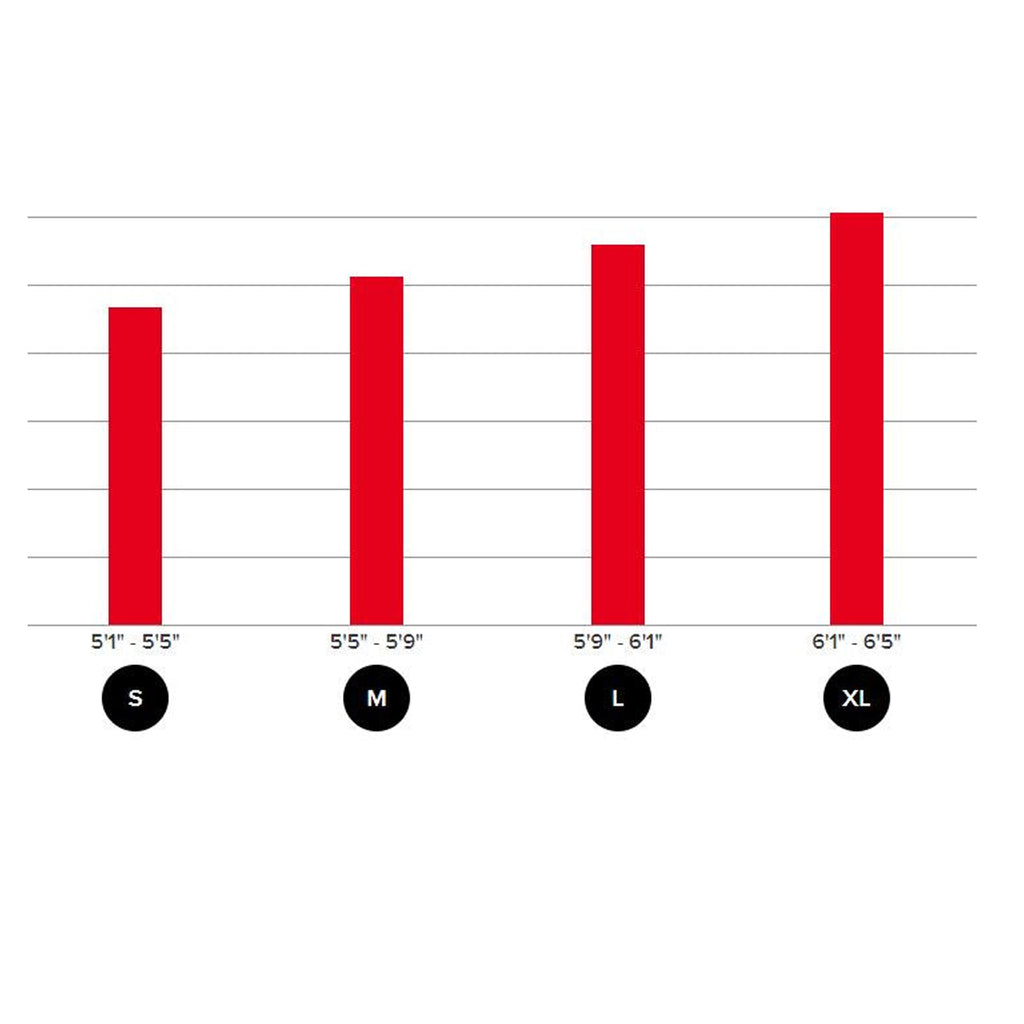

The Blur's chainstay length is matched to frame size so every rider, no matter their height, gets the same balanced geometry and bike fit.


Two water bottles
Two water bottle mounts within the front triangle mean there's enough juice (or whatever electrolytes you choose) to keep the engine running.


No proprietary gubbins
There's no fiddly proprietary parts that could leave you stranded in a Cape Epic or Breck Epic campsite.

Made to last many lifetimes
The legendary Santa Cruz fit, finish and quality construction put this into a league of its own. The frame, bearings and optional Reserve wheels come with a lifetime warranty and any service is easy to do with our Rider Support pledge.

Chainguide
The only thing you'll be dropping is your competitors

Superlight™ Suspension
Our priority with the Blur was to ensure that every kilojoule of a rider's energy is translated into forward thrust.  That meant making something lightweight but also really efficient. This is the (super)lightest suspension we've ever made.

Lifetime Warranty and Support
Missing a ride sucks. That's why we build the very best bikes and offer legendary rider support for life so that you don't.

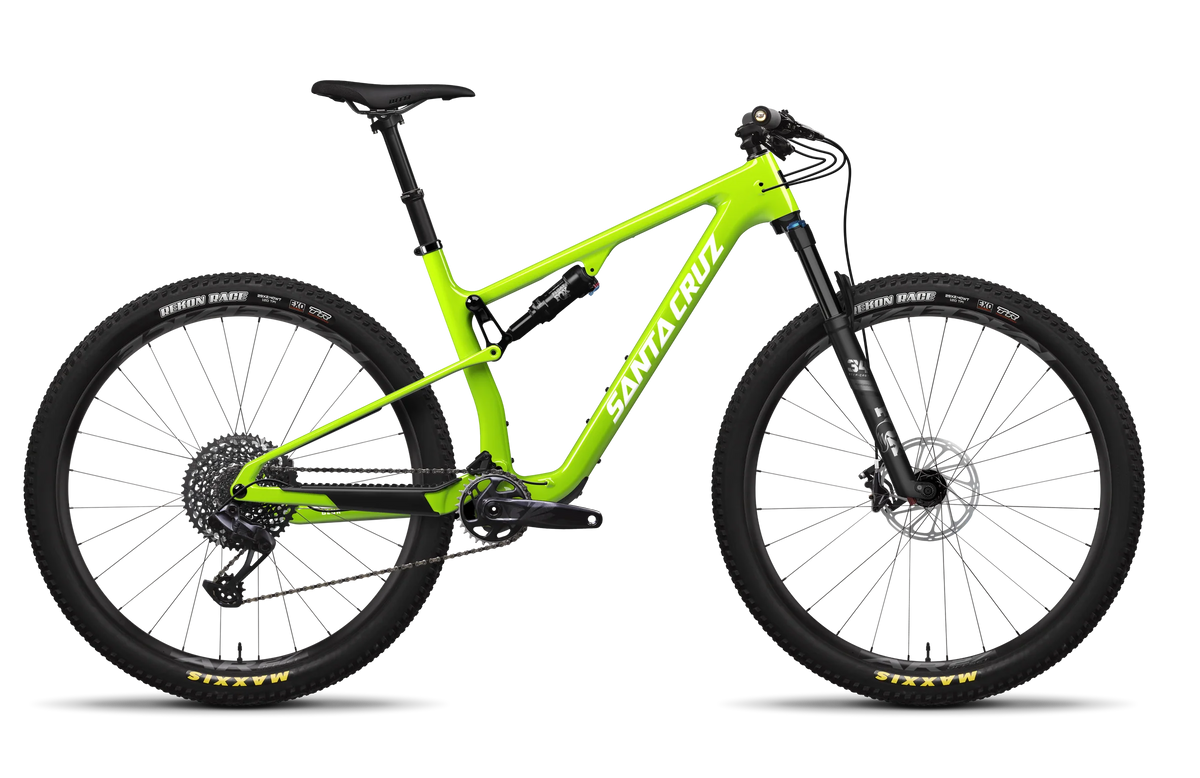

R-Kit

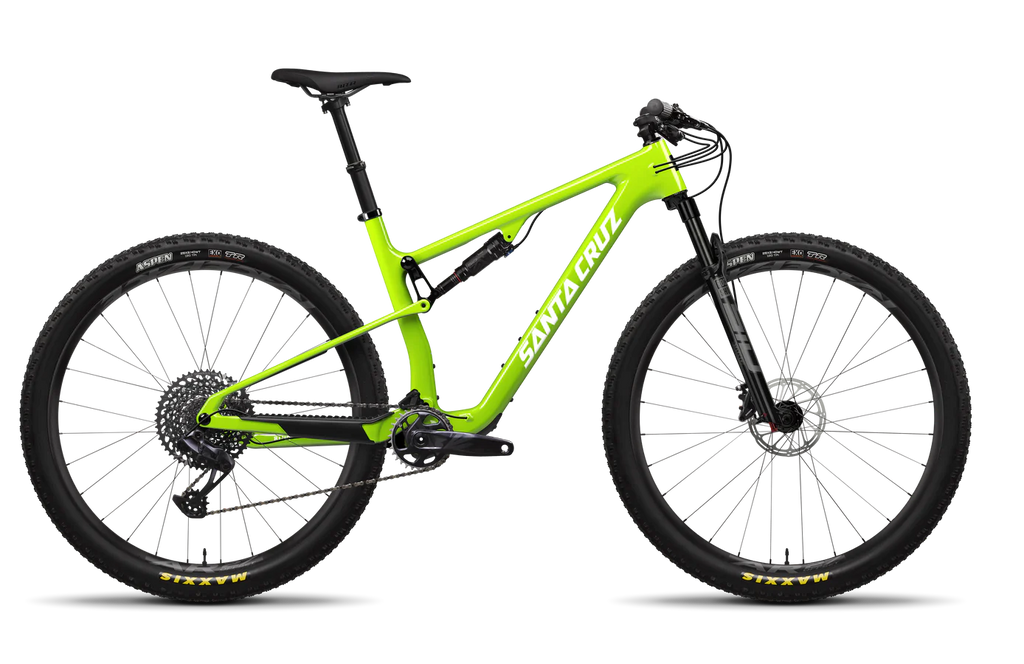

This is for the Gloss Spring Green color.

S-Kit TR

This is for the Gloss Spring Green color.

SPECS:

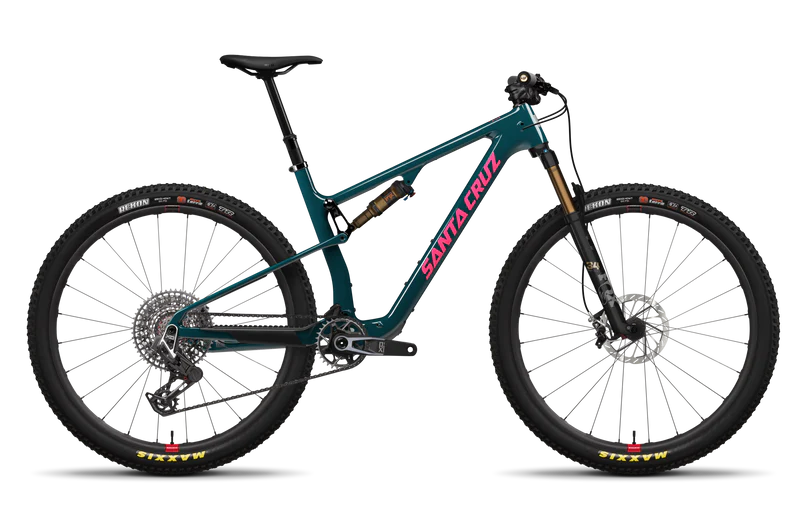

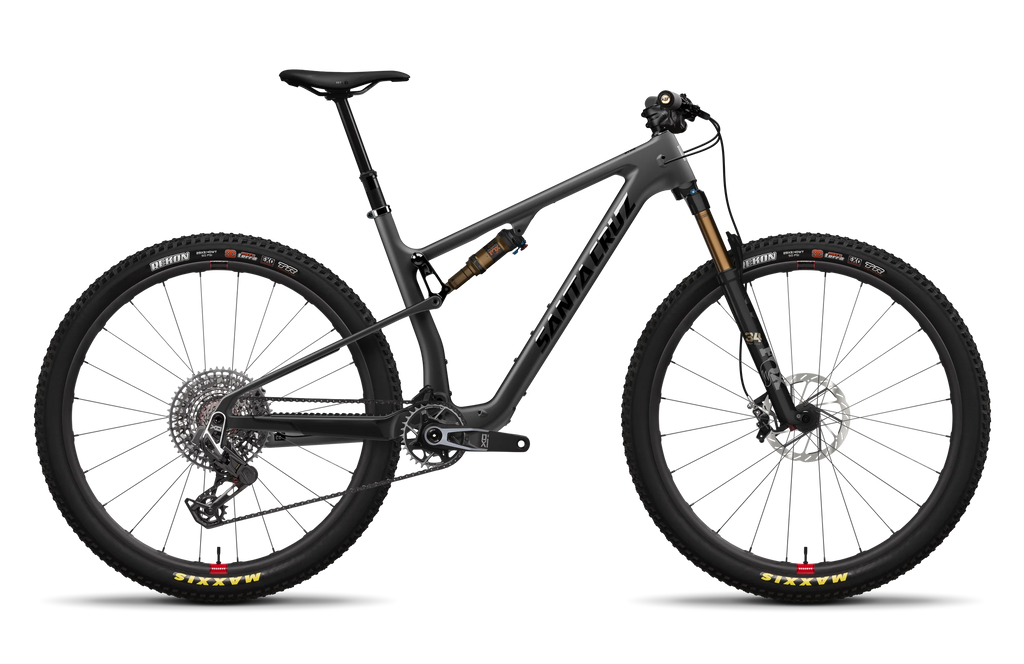

XO AXS Reserve ( not the trail version)

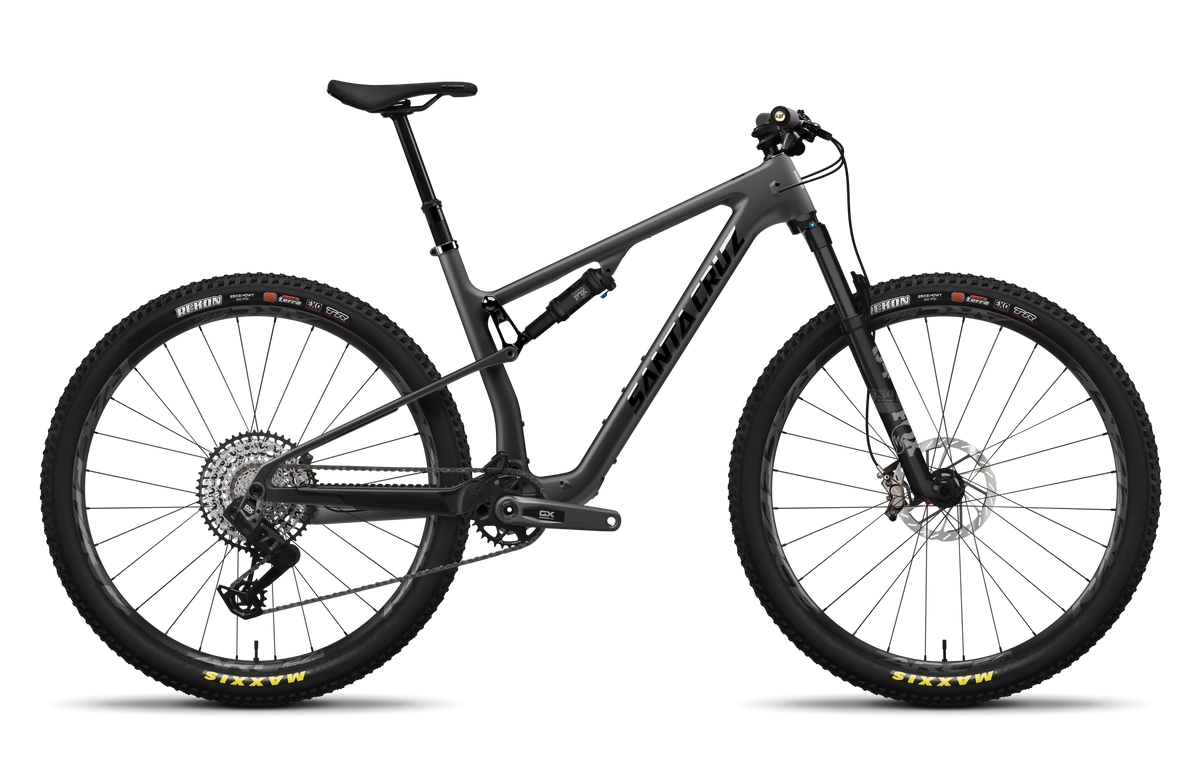

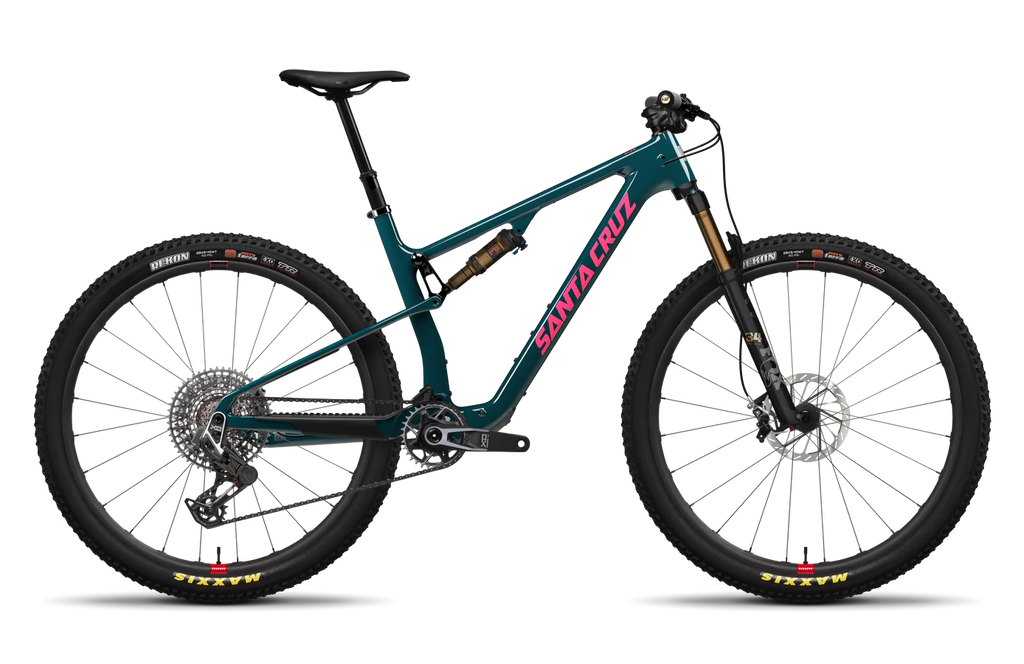

This is for the gloss dark teal and carbon colors.

Frame

Material   Carbon CC

Travel   107mm

Weight   25.29 lbs / 11.47 kg

Wheel Size   29

Suspension

Fork   RockShox SID SL Ultimate, 110mm, w/ Remote

Shock   RockShox SidLuxe Ultimate, 3-Position, w/Remote, 190x42.5

Remote   SRAM TwistLoc Ultimate, 3-Position, Full Sprint

Drivetrain

Bottom Bracket   SRAM DUB 73mm MTB Wide BB

Cassette   SRAM X0 Eagle T-Type, 10-52t

Chain   SRAM X0 Eagle T-Type, Flattop, 12spd

Chainguide   OneUp Chainguide

Crankset  SRAM X0 Eagle DUB T-Type Crankset, 34t

Rear Derailleur   SRAM X0 Eagle AXS T-Type, 12spd

Right Shifter   SRAM AXS Pod Controller Rocker Paddle

Brakes

Brakes   SRAM Level Silver Stealth 4-Piston

Front Rotor   SRAM HS2 Centerlock 180mm

Rear Rotor   SRAM HS2 Centerlock 160mm

Cockpit

Grips / Bar Tape   SRAM Grips

Handlebars   Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise

Headset   Cane Creek 40 IS Integrated Headset

Saddle   WTB Silverado Medium Fusion, CroMo SL

Seatpost   OneUp Dropper Post, 31.6

Stem   SRAM Atmos 7k, 60mm

Wheels

Front Rim  Reserve 28|XC Carbon

Front Hub   DT Swiss 350, 15x110, Centerlock, 24h

Front Tire  Maxxis Rekon Race 29"x2.4" 3C MaxxSpeed, EXO

Rear Rim   Reserve 28|XC Carbon

Rear Hub   DT Swiss 350, 12x148, XD, Centerlock, 24h, 36t

Rear Tire   Maxxis Rekon Race 29"x2.4" 3C MaxxSpeed, EXO

Specs

Bottom Bracket Shell   73mm Threaded

Rear Brake Mount   160 PM

Shock Length   190mm

Fork Compatibility   100-120mm

Fork Offset   44mm

Front Derailleur Mount   No compatibility

Headset   Integrated (IS41/52)

Max Chainring Size   36t

Max Tire Clearance   2.4"

Seat Clamp Diameter   36.4mm

Seat Post Diameter   31.6mm

Shock Bushing Size Front   20x8

Shock Bushing Size Rear   20x8

Shock Stroke   42.5mm (XC) | 45mm (TR)

Suspension System   Superlight™

Water Bottle Mounts   2 inside main triangle | 1 under downtube

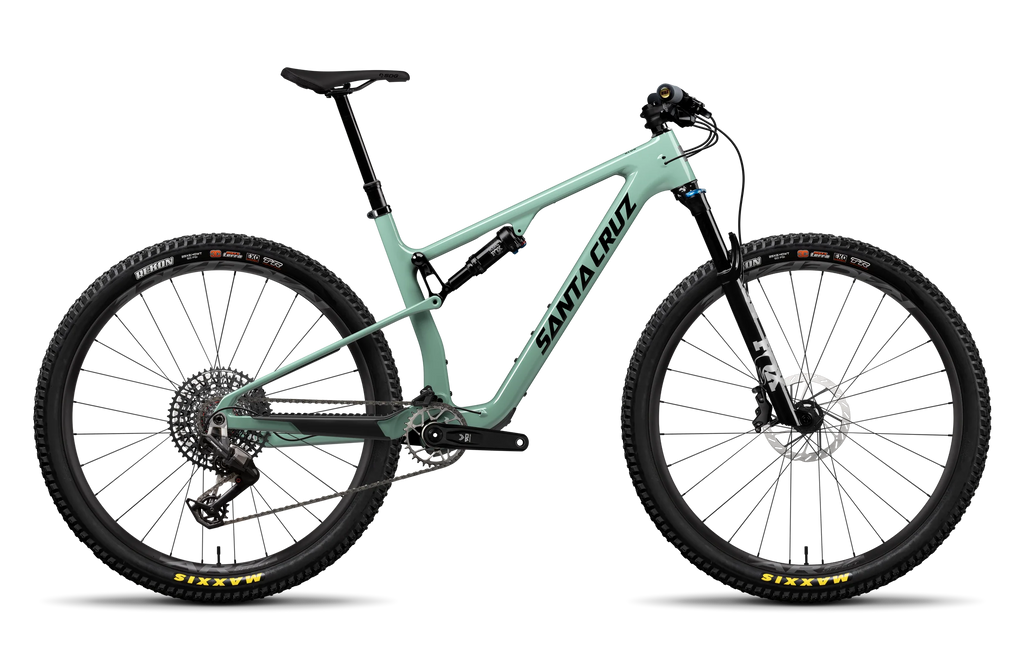

90 Trail

This is for the gloss light teal color.

Frame

Carbon C 29" 115mm Travel Superlight™

Weight

28.1lbs / 12.75 kg

Wheel Size

29"

Suspension

Fork

FOX 34 SL Float Performance, Grip, 120mm

Shock

FOX Float SL Performance, 190x45

Drivetrain

Bottom Bracket

SRAM DUB 73mm MTB Wide BB

Cassette

SRAM XS 1275 Eagle T-Type, 10-52t

Chain

SRAM GX Eagle T-Type, Flattop, 12spd

Chainguide

OneUp Chainguide

Crankset

SRAM 90 Eagle DUB T-Type Crankset, 34t

Rear Derailleur

SRAM 90 Eagle T-Type, 12spd

Right Shifter

SRAM 90 Eagle T-Type, 12spd

Brakes

Front Brakes

SRAM DB8

Front Rotor

SRAM HS2 180mm

Rear Rotor

SRAM HS2 180mm

Cockpit

Grips / Bar Tape

ESI Chunky Grips

Handlebars

SRAM Atmos Flat Bar, 31.8x760

Headset

Cane Creek 50 IS Integrated Headset

Saddle

SDG Bel-Air V3 Lux-Alloy

Seatpost

OneUp Dropper Post, 31.6

Stem

SRAM Atmos Stem, 60mm

Wheels

Front Rim

RaceFace AR Offset 27 29"

Front Hub

DT Swiss 370, 15x110, 6-Bolt, 28h

Front Tire

Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO

Rear Rim

RaceFace AR Offset 27 29"

Rear Hub

DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h

Rear Tire

Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO

Specs

Bottom Bracket Shell

73mm Threaded

Rear Brake Mount

160 PM

Shock Length

190mm

Fork Compatibility

100-120mm

Fork Offset

44mm

Front Derailleur Mount

No compatibility

Headset

Integrated (IS41/52)

Max Chainring Size

36t

Max Tire Clearance

2.4"

Seat Clamp Diameter

36.4mm

Seat Post Diameter

31.6mm

Shock Bushing Size Front

20x8

Shock Bushing Size Rear

20x8

Shock Stroke

42.5mm (XC) | 45mm (TR)

Suspension System

Superlight™

Water Bottle Mounts

2 inside main triangle | 1 under downtube

70 Trail

This is for the gloss light teal color.

Frame

Carbon C 29" 115mm Travel Superlight™

Weight

29.75lbs / 13.5 kg

Wheel Size

29"

Suspension

Fork

RockShox Sid Base, 120mm, w/ 3-Position Lever

Shock

FOX Rhythm, 190x45

Drivetrain

Bottom Bracket

SRAM DUB 73mm MTB Wide BB

Cassette

SRAM XS 1270 Eagle T-Type, 10-52t

Chain

SRAM 70 Eagle T-Type, Flattop, 12spd

Chainguide

OneUp Chainguide

Crankset

SRAM 70 Eagle DUB T-Type Crankset, 34t

Rear Derailleur

SRAM 70 Eagle T-Type, 12spd

Right Shifter

SRAM 90 Eagle T-Type, 12spd

Brakes

Front Brakes

SRAM DB8

Front Rotor

SRAM Centerline, 180mm

Rear Rotor

SRAM Centerline, 180mm

Cockpit

Grips / Bar Tape

ESI Chunky Grips

Handlebars

RaceFace Ride, 10mm Rise, 35x760mm

Headset

Cane Creek 10 IS Integrated Headset

Saddle

SDG Bel-Air V3, Steel

Seatpost

SDG Tellis Dropper, 31.6

Stem

RaceFace Ride, 60mm

Wheels

Front Rim

RaceFace AR Offset 27 29"

Front Hub

SRAM MTH 716, 15x110, 6-Bolt, 32h

Front Tire

Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO

Rear Rim

RaceFace AR Offset 27 29"

Rear Hub

SRAM MTH 746, 12x148, HG, 6-Bolt, 32h

Rear Tire

Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO

Specs

Bottom Bracket Shell

73mm Threaded

Rear Brake Mount

160 PM

Shock Length

190mm

Fork Compatibility

100-120mm

Fork Offset

44mm

Front Derailleur Mount

No compatibility

Headset

Integrated (IS41/52)

Max Chainring Size

36t

Max Tire Clearance

2.4"

Seat Clamp Diameter

36.4mm

Seat Post Diameter

31.6mm

Shock Bushing Size Front

20x8

Shock Bushing Size Rear

20x8

Shock Stroke

42.5mm (XC) | 45mm (TR)

Suspension System

Superlight™

Water Bottle Mounts

2 inside main triangle | 1 under downtube
