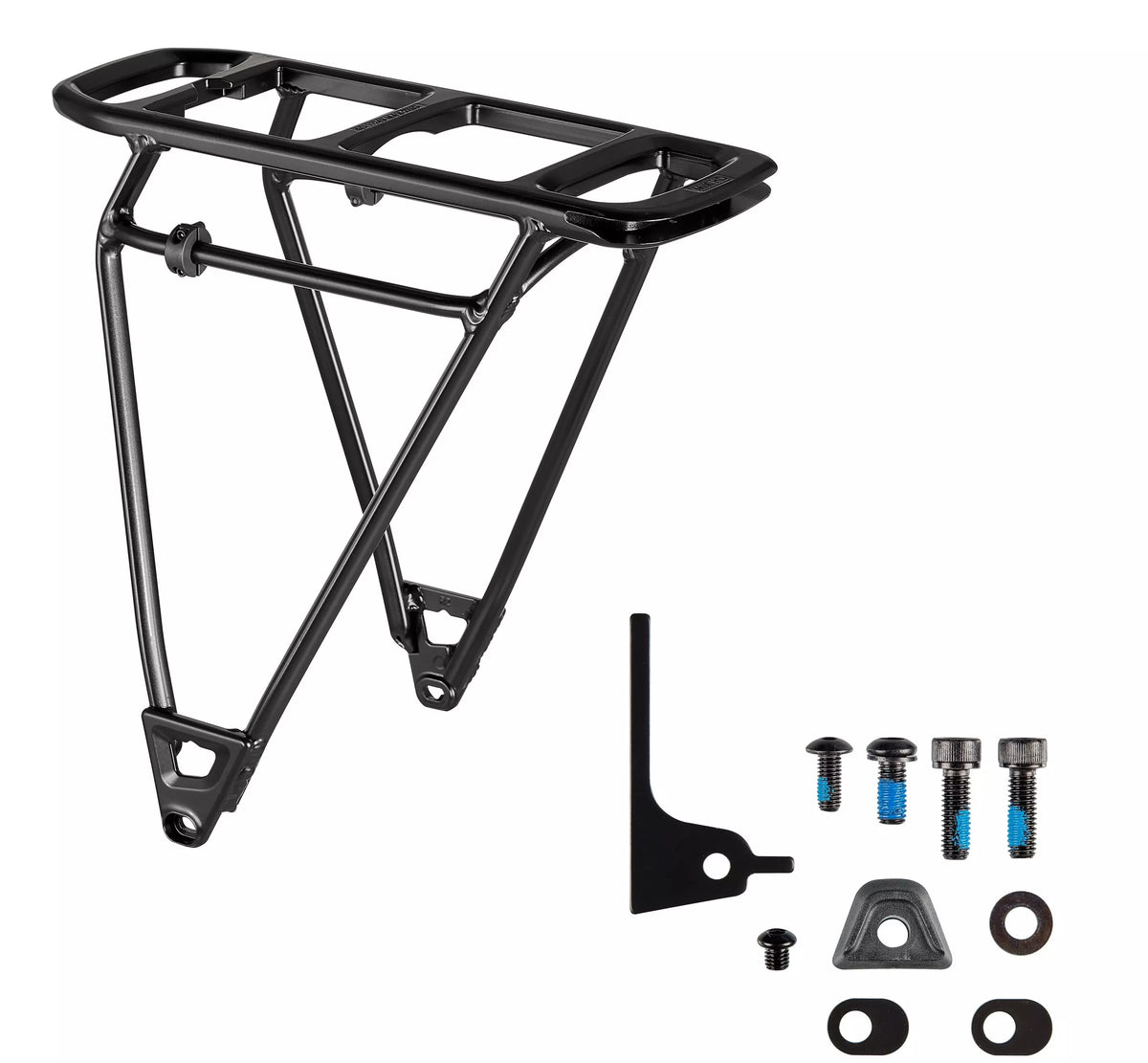

Custom rear rack that integrates with the rear fender body for Gen.2 Vado & Como bikes equipped with 650B wheels.
- Requires use of dedicated rear fender in order to mount to the bike.
- Compatible with MIK HD accessories & most standard panniers.
- Compatible with integrated wired Spanninga taillight, available separately - S245800001.
- Includes adjustable pannier stoppers to prevent panniers from sliding while riding.
- Includes M6 x 1.0P x 16mm length bolts for the drop-out mounts - 2 pcs.
- Includes flip-chip washer for the drop-out mounting bolts - 2 pcs.
- Includes plastic spacer that fits between the rear fender body and forward rack mount - 1 pcs.
- Includes M6 x 1.0P x 16mm length bolt for mounting the fender to the forward rack mount - 1 pcs.
- Includes M5 x 0.8P x 16mm length bolt for mounting the fender to the rearward rack mount - 1 pcs.
- Includes cable-guide and mounting bolt for routing the integrated rear taillight wire.
- Max Weight: 27 kg / 59 lbs.
