Pivot Shuttle AMP'd
150Nm • 1300W • 800Wh
Made for mayhem. The Shuttle AMP'd slots between Pivot's Shuttle AM and Shuttle LT and is built around the all-new Avinox M2S drive unit — up to 150Nm of torque and 1,300 watts of peak power from a compact 2.6kg system — paired with an 800Wh integrated battery, 150mm of dw-link rear travel, a 160mm fork, and a mixed-wheel (29" front / 27.5" rear) setup. Sharp reactions, lively handling, and a ride that stays planted when the trail gets gnarly.
Key Highlights
Avinox M2S Drive Unit
Up to 150Nm torque and 1,300W peak power. Avinox SmoothShift integrates with SRAM Eagle Transmission for uninterrupted shifts under full power.
800Wh Integrated Battery
Slim, integrated packaging for extended range on long days. Avinox 508W fast charger included.

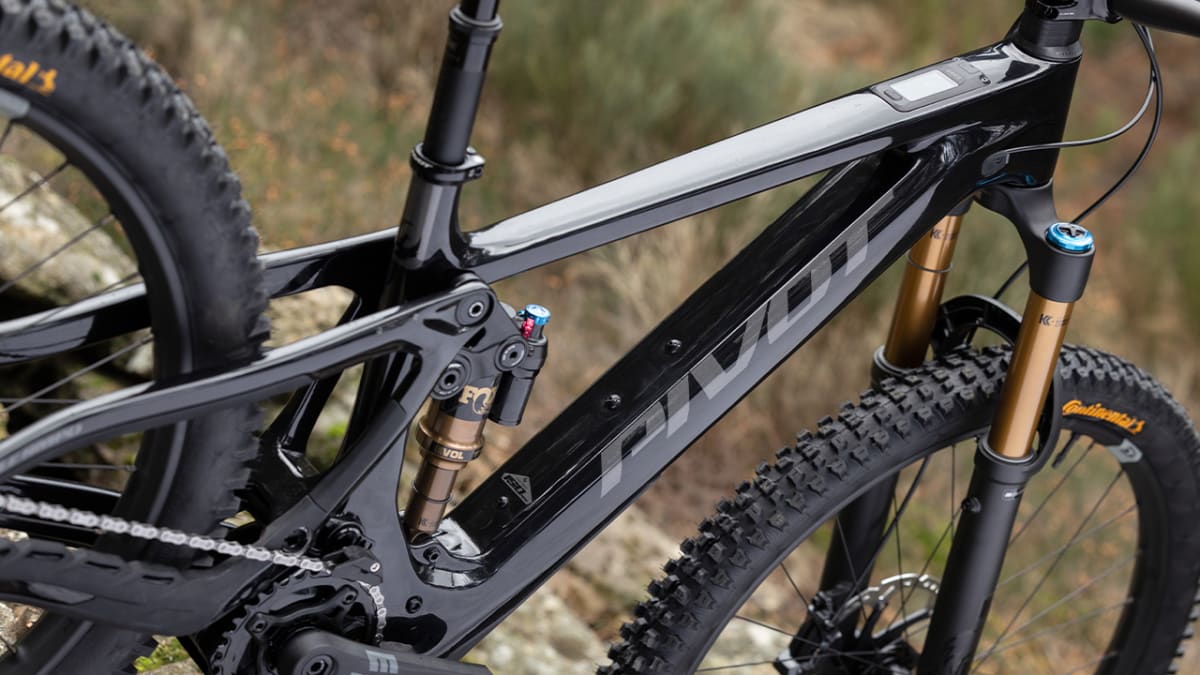

Hollow Core Full Carbon Frame + dw-link
150mm of tuned dw-link travel with a Pivot Flip-Chip for geometry adjustment and dual-29 compatibility. Full internal routing via the Pivot Cable Port System, injection-molded rubberized frame protection, and Pivot Dock tool compatibility.
RockShox Ultimate Suspension
Zeb Ultimate 160mm fork with the Charger 3.2 damper, paired with a Super Deluxe Ultimate rear shock featuring the Linear XL air spring, ButterCup technology, and Adjustable Bottom Out.
SRAM X0 Eagle Transmission
Wireless 12-speed T-Type shifting, powered directly from the main battery — no derailleur battery to charge.
Gravity-Ready Build
SRAM Maven Silver 4-piston brakes on 200mm HS2 rotors, DT Swiss Hybrid HX1501 wheels, Continental Kryptotal Enduro tires, OneUp V3 dropper, and a Phoenix Team carbon cockpit.
Who This Bike Is For
Riders who want a full-power, gravity-leaning eMTB that still feels playful and precise — the rider who was already beefing up a Shuttle AM and wants the muscle without stepping up to the Shuttle LT.
• Want the most powerful drive system in the Shuttle lineup
• Ride steep, rough trails and want 160/150mm of premium suspension
• Prefer a mixed-wheel setup for quick corner exits and rollover up front
• Want wireless SRAM Transmission with no separate derailleur battery
Why Buy From Gravity Coalition
• Professional bike assembly and tuning
• Suspension setup recommendations from real riders
• Direct support from our shop team
• Trusted mountain bike shop in Heber Valley

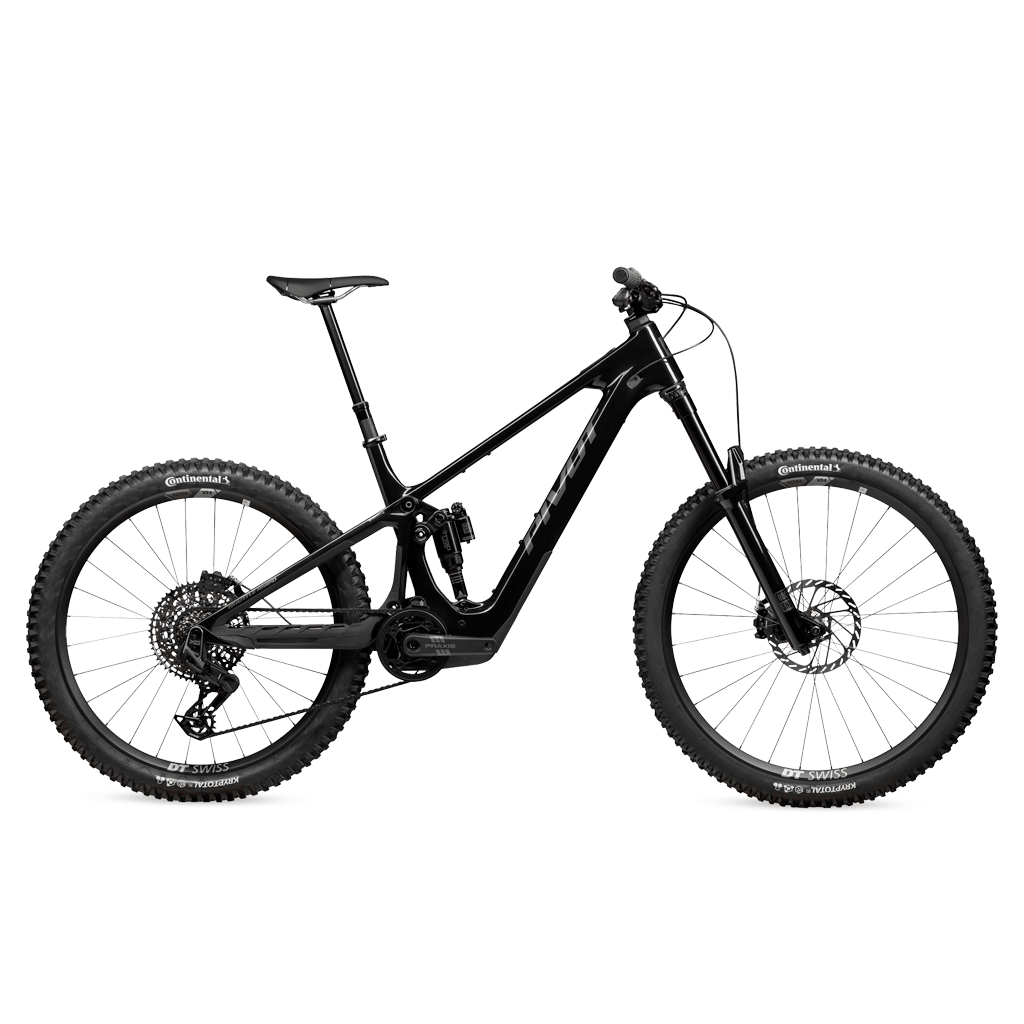

Pro X0 Eagle Transmission — Full Build Specs ($11,999)
E-Bike
Drive Unit
Avinox M2S, up to 150Nm torque / 1,300W peak power
Battery
Avinox 800Wh integrated
Display / Remotes
Avinox OLED Control Display with left/right wireless remotes
Charger
Avinox 508W Fast Charger
Frameset
Frame
Shuttle AMP'd Hollow Core Full Carbon, dw-link suspension, 150mm travel, Pivot Flip-Chip (mixed-wheel stock, dual-29 compatible), Cable Port System internal routing, 12x157mm Super Boost rear spacing
Headset
Pivot Precision Sealed Cartridge
Suspension
Fork
RockShox Zeb Ultimate 29", 160mm, 44mm offset, Charger 3.2 damper
Rear Shock
RockShox Super Deluxe Ultimate, Linear XL air spring, ButterCup, Adjustable Bottom Out
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission, 12-speed
Shifter
SRAM AXS Pod Controller
Cassette
SRAM GX 1275 Eagle Transmission, 10-52t
Chain
SRAM X0 Eagle Flattop, 12-speed
Crankset
Praxis Alloy eCranks E-MTB, 34t, 155mm
Brakes
Brakes
SRAM Maven Silver 4-piston
Rotors
SRAM HS2, 6-bolt, 200mm front and rear
Wheels & Tires
Wheels
DT Swiss Hybrid HX1501, 30mm, mixed 29"/27.5", 15x110mm front / 12x157mm rear
Front Tire
Continental Kryptotal-F 29" x 2.4", Super Soft compound, Enduro casing
Rear Tire
Continental Kryptotal-R 27.5" x 2.6", Soft compound, Enduro casing
Cockpit
Handlebar
Phoenix Team Carbon — XS: 760mm / 20mm rise; SM: 780mm / 20mm rise; MD–XL: 780mm / 35mm rise
Stem
Phoenix Team Enduro V2 — XS: 32mm; SM–LG: 40mm; XL: 50mm
Grips
Phoenix Factory Lock-On
Seatpost
OneUp Dropper V3 — XS–SM: 150mm; MD: 180mm; LG: 210mm; XL: 240mm
Saddle
Pivot Pro E-Bike
Geometry (Low setting, mixed wheels)
| XS | SM | MD | LG | XL | |
|---|---|---|---|---|---|
| Reach | 416 | 431 | 456 | 471 | 491 |
| Stack | 616 | 636 | 645 | 655 | 664 |
| Effective Top Tube | 576 | 606 | 633 | 650 | 673 |
| Seat Tube Length | 343 | 378 | 399 | 432 | 470 |
| Head Tube Angle | 63.3° | 63.3° | 63.3° | 63.3° | 63.4° |
| Seat Tube Angle | 76.1° | 76.1° | 76.1° | 76.1° | 76.1° |
| Chainstay | 443 | 443 | 443 | 443 | 443 |
| Wheelbase | 1189 | 1219 | 1248 | 1267 | 1292 |
| BB Height | 335 | 335 | 335 | 335 | 335 |
| Standover | 640 | 658 | 666 | 666 | 677 |
All measurements in mm. High flip-chip setting raises BB 5mm and steepens angles ~0.4°.
Weight
21.5 kg (47.4 lb), size LG, per manufacturer
Intended Use
Enduro, E-MTB
Components are subject to change without notice.
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions, Intertek Testing Services, and/or SGS.
